NYTRO E7 GRAVEL

POWER UP YOUR WAY

Current setup

NYTRO E7 GRAVEL | SRAM FORCE AXS NYTRO GRAVEL | Fulcrum Soniq AL DB | ITALIAN WINE | 460

Group

Wheels

Color: ITALIAN WINE

Size

POWER UP YOUR WAY

The new Nytro E-line opens up a world of possibilities to experience cycling! This range is designed for all cyclists looking to enjoy the emotions of cycling. It’s created with adventure in mind, allowing riders to tackle long rides and the steep climbs of Alpine passes with more agility and confidence than a traditional road bike.

NYTRO E7 GRAVEL
Innovation
CARBON T900 UD
TQ-HPR50 DRIVE UNIT
ONDA FORK
ASYMMETRIC FRAME
CARBON <span>T900 UD</span>



milestones

CARBON T900 UD

The right balance between reactivity, dampening capabilities and lightness for competition.

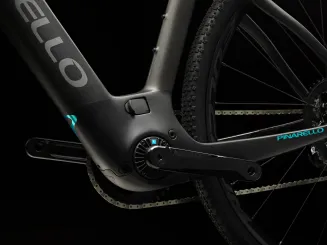

TQ-HPR50 <span>DRIVE UNIT</span>





TQ-HPR50 DRIVE UNIT

The Harmonic Pin Ring Transmission (HPR) is a result of TQ’s decades-long experience in the development and engineering of electric motors for robots, satellites, space stations and mars rovers.

ONDA <span>FORK </span>



milestones

ONDA FORK

A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.

ASYMMETRIC <span>FRAME</span>





milestones

ASYMMETRIC FRAME

Since the beginning, Pinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
440 460 523 74.5 69.75 437 125 78 50 395 357.4 558.9
480 500 535 74 70 437 137 78 50 395 364.2 571.2
510 530 550 73.75 70.25 437 155 78 50 395 372.9 589.1
530 550 564 73.5 71 437 170 78 50 395 380.6 606.3
565 575 581 73 71.25 437 190 74 50 395 388.3 622.3
590 600 597 72.75 71.5 437 210 74 50 395 395.9 642.3
NYTRO E7 GRAVEL Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

COCKPIT
HANDLEBAR
MOST Jaguar GR TiCR Alu
STEM
MOST Tiger Aero Alu TiCR
BAR TAPE
MOST Ultragrip Evo 3mm - Black
SEAT CLAMP
FSC Frontal Seat Clamp
WHEELS AND TIRES
WHEELSET DISC
FULCRUM SONIQ AL
