WE ARE BACK!

The Dogma XC frames were born from the collaboration with Tom Pidcock and Pauline Ferrand-Prévot, two of the strongest riders in modern cross-country racing.
The project immediately achieved a historic milestone with a double victory at the Paris 2024 Olympic Games, confirming the ability of the Dogma XC and Dogma XC Hardtail platforms to excel at the highest level.
Throughout the 2024 and 2025 seasons, Tom Pidcock has claimed numerous World Cup wins, further establishing the Dogma XC as a benchmark for performance, precision, and speed.

DOGMA XC XX SL 100
Innovation
UNIQUE BOTTOM BRACKET AREA
ASYMMETRY
FLEX STAYS
SPLIT REAR TRIANGLE
KINEMATICS
ADJUSTABLE TRAVEL
COCKPIT
UNIQUE <span> BOTTOM BRACKET AREA </span>



UNIQUE BOTTOM BRACKET AREA

This frame delivers extreme stiffness in the rear triangle and bottom bracket, thanks to an oversized bearing and pivot point for the rear triangle.

ASYMMETRY <span>





ASYMMETRY

The rear triangle utilizes a patented asymmetric design with the left-hand side being reinforced, allowing the bike to counterbalance the higher forces being applied on the opposite side of the drivetrain. This results in more balanced energy transfer, improved speed and traction.

Asymmetry has also been maximized in other areas of the frame, with the chain and seat stays pushing this concept to the next level in order to withstand the powerful accelerations which are delivered in elite cross-country races.

FLEX <span> STAYS </span>



FLEX STAYS

Having just three pivot points on the rear triangle typically inhibits rear wheel travel, but the bikes’ unique geometry and integration of flex stays combine to enable travel in a more direct manner. These innovations also save weight, improve stiffness, and deliver an improved connection between rider and rear wheel.

SPLIT <span> REAR TRIANGLE </span>





SPLIT REAR TRIANGLE

The rear triangle comprises two distinct semi-triangles fitted to a main rotation point using a unique design where two pins are moulded to the frames. This results in the elimination of a classic external ‘bridge’ which allows for a reduced chain stay length and delivers improved handling and reactivity, the elimination of critical mud accumulation areas and the ability to adopt wider tires, providing riders with a greater range of options.

KINEMATICS



KINEMATICS

The rear suspension kinematics take the integration of flex stays into account to maximize energy transfer while pedalling, deliver optimal compression/rebound on technical descents, and enable maximal rider control.

Friction at each pivot point has also been minimized by utilizing a mixed bearings/bushing system. Bushings have been incorporated as they are durable enough to absorb the high impact and low rotational forces placed upon them, whereas bearings have been integrated where the opposite forces apply (low impact/high rotation). This results in reduced energy dispersion, increased reactivity of the rear end, and increased durability of the system.

Anti-rise and anti-squat values have also been studied to create a bike which excels on both the steepest climbs and most technical descents.

ADJUSTABLE<span> TRAVEL</span>





ADJUSTABLE TRAVEL

The ability to move the suspension connection point under the top tube allows different rear shock absorbers to be fitted, accommodating for a range of travel options and allowing the riders to match their bike to the unique demands of each ride.

COCKPIT



COCKPIT

The custom designed, fully integrated cockpits save weight and offer increased driving precision compared to a two- piece alternative. Fully integrated cable routing is also incorporated, as is a specific headset bearing which features an internal stopper to prevent the handlebar from over-rotating.

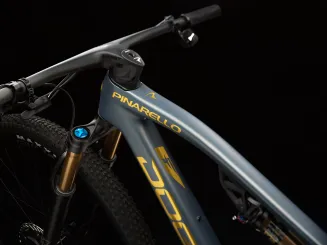

DOGMA XC XX SL 100
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__181a4cd962ed11d1a4651cfd9de160f4.webp 4323w

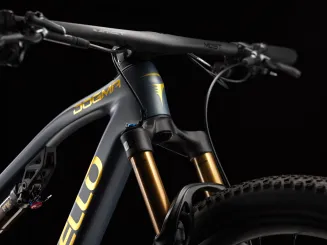

DOGMA XC XX SL 100
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__85e3d883b9b0f106195c49b2a365b9a9.webp 4323w
DOGMA XC XX SL 100
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__670affc4076f338e917ee69632a5bc7b.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__670affc4076f338e917ee69632a5bc7b.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__670affc4076f338e917ee69632a5bc7b.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__670affc4076f338e917ee69632a5bc7b.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__670affc4076f338e917ee69632a5bc7b.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__670affc4076f338e917ee69632a5bc7b.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__670affc4076f338e917ee69632a5bc7b.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__670affc4076f338e917ee69632a5bc7b.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__670affc4076f338e917ee69632a5bc7b.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__670affc4076f338e917ee69632a5bc7b.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__670affc4076f338e917ee69632a5bc7b.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__670affc4076f338e917ee69632a5bc7b.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__670affc4076f338e917ee69632a5bc7b.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__670affc4076f338e917ee69632a5bc7b.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__670affc4076f338e917ee69632a5bc7b.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__670affc4076f338e917ee69632a5bc7b.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__670affc4076f338e917ee69632a5bc7b.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__670affc4076f338e917ee69632a5bc7b.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__670affc4076f338e917ee69632a5bc7b.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__670affc4076f338e917ee69632a5bc7b.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__670affc4076f338e917ee69632a5bc7b.webp 2428w
DOGMA XC XX SL 100
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__86d1ebf760878a5b6ddcf9c4f4738cdc.webp 2428w

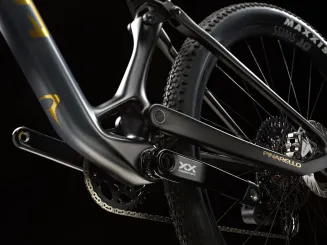

DOGMA XC XX SL 100
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__ddcab38375d0246758c50784ed4a50b5.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__ddcab38375d0246758c50784ed4a50b5.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__ddcab38375d0246758c50784ed4a50b5.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__ddcab38375d0246758c50784ed4a50b5.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__ddcab38375d0246758c50784ed4a50b5.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__ddcab38375d0246758c50784ed4a50b5.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__ddcab38375d0246758c50784ed4a50b5.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__ddcab38375d0246758c50784ed4a50b5.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__ddcab38375d0246758c50784ed4a50b5.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__ddcab38375d0246758c50784ed4a50b5.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__ddcab38375d0246758c50784ed4a50b5.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__ddcab38375d0246758c50784ed4a50b5.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__ddcab38375d0246758c50784ed4a50b5.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__ddcab38375d0246758c50784ed4a50b5.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__ddcab38375d0246758c50784ed4a50b5.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__ddcab38375d0246758c50784ed4a50b5.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__ddcab38375d0246758c50784ed4a50b5.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__ddcab38375d0246758c50784ed4a50b5.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__ddcab38375d0246758c50784ed4a50b5.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__ddcab38375d0246758c50784ed4a50b5.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__ddcab38375d0246758c50784ed4a50b5.webp 4323w
DOGMA XC XX SL 100
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__4d2abbf43e1eebb41ccf51abee1224c4.webp 2428w
DOGMA XC XX SL 100
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__e4921574a0b61b8937fe6ba805137011.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__e4921574a0b61b8937fe6ba805137011.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__e4921574a0b61b8937fe6ba805137011.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__e4921574a0b61b8937fe6ba805137011.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__e4921574a0b61b8937fe6ba805137011.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__e4921574a0b61b8937fe6ba805137011.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__e4921574a0b61b8937fe6ba805137011.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__e4921574a0b61b8937fe6ba805137011.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__e4921574a0b61b8937fe6ba805137011.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__e4921574a0b61b8937fe6ba805137011.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__e4921574a0b61b8937fe6ba805137011.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__e4921574a0b61b8937fe6ba805137011.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__e4921574a0b61b8937fe6ba805137011.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__e4921574a0b61b8937fe6ba805137011.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__e4921574a0b61b8937fe6ba805137011.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__e4921574a0b61b8937fe6ba805137011.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__e4921574a0b61b8937fe6ba805137011.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__e4921574a0b61b8937fe6ba805137011.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__e4921574a0b61b8937fe6ba805137011.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__e4921574a0b61b8937fe6ba805137011.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__e4921574a0b61b8937fe6ba805137011.webp 2428w

Geometries

CF SIZE L I A A1 B F P T D R G REACH STACK
405 S 578 151.3 75.5 69.75 67.5 699.1 427.5 85 46 44 511 426.5 584.9
435 M 608 153 75.45 69.75 67.5 729.2 427.5 90 46 44 511 455 589.5
470 L 634 159 75.3 69.75 68 750 427.5 105 46 44 511 475 605.8
500 XL 659.1 164.1 75.15 69.75 68 775.6 427.5 120 46 44 511 495 619.7
DOGMA XC XX SL 100 Geometry

ALL COMPONENTS

FRAME SET
FRAME
TorayCa M40J
TiCR
SHOCKS
FRONT SUSPENSION
FOX 32 FACTORY SC KASHIMA 100MM
REAR SUSPENSION
FOX FLOAT SL FACTORY KASHIMA 190X45
DRIVETRAIN
CRANKSET AND CHAINRINGS
SRAM XX SL EAGLE
COCKPIT
INTEGRATED HANDLEBAR
TALON ULTRA XC
SADDLE
LYNX 2 0 XC
DROPPER POST
FOX TRANSFER SL KASHIMA D30 9MM DROP 100MM
WHEELS AND TIRES
TYRES DISC
MAXXIS REKON EXO 29X2.4
WHEELSET DISC
DT Swiss XRC 1200 SPLINE
