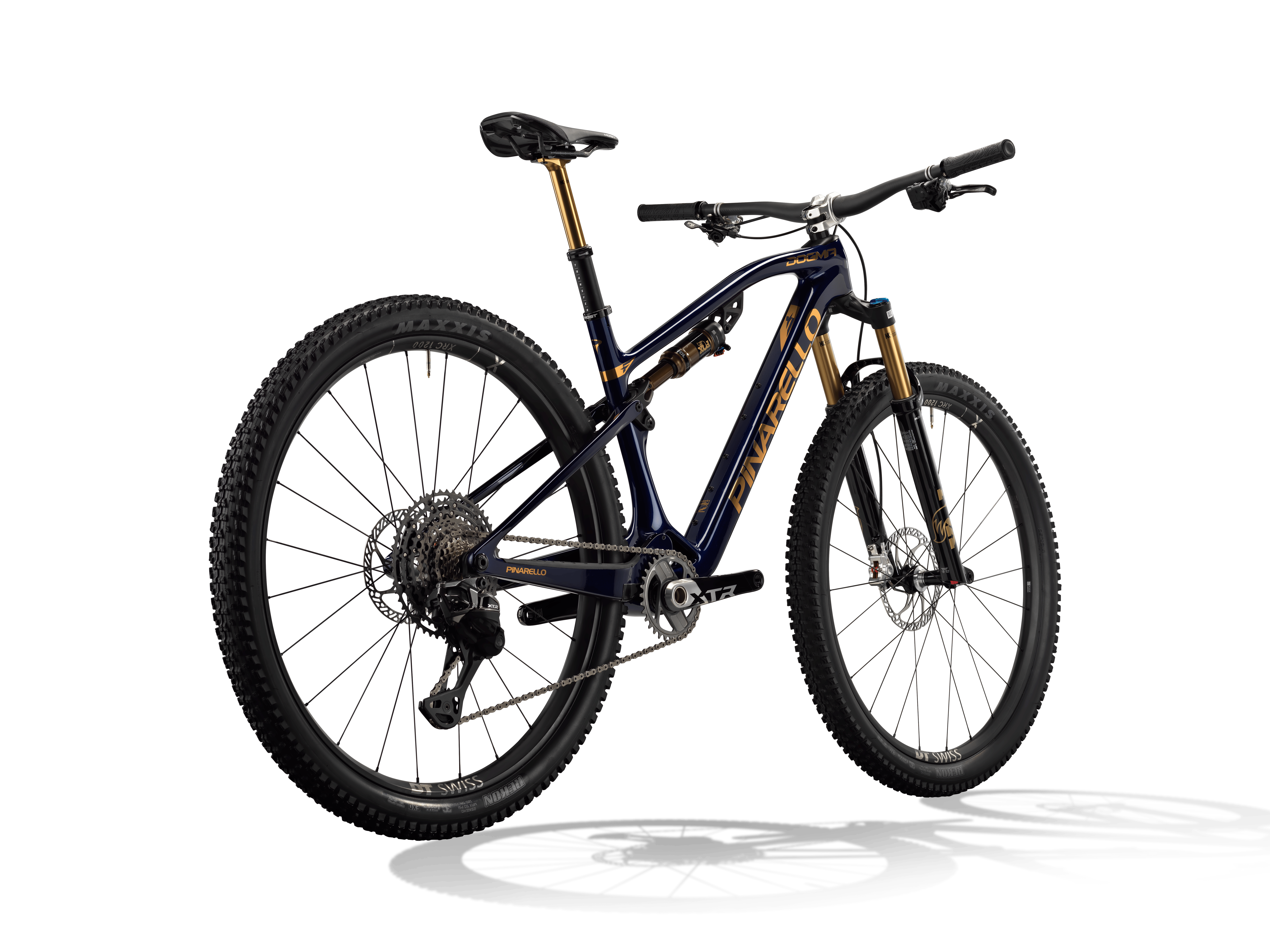

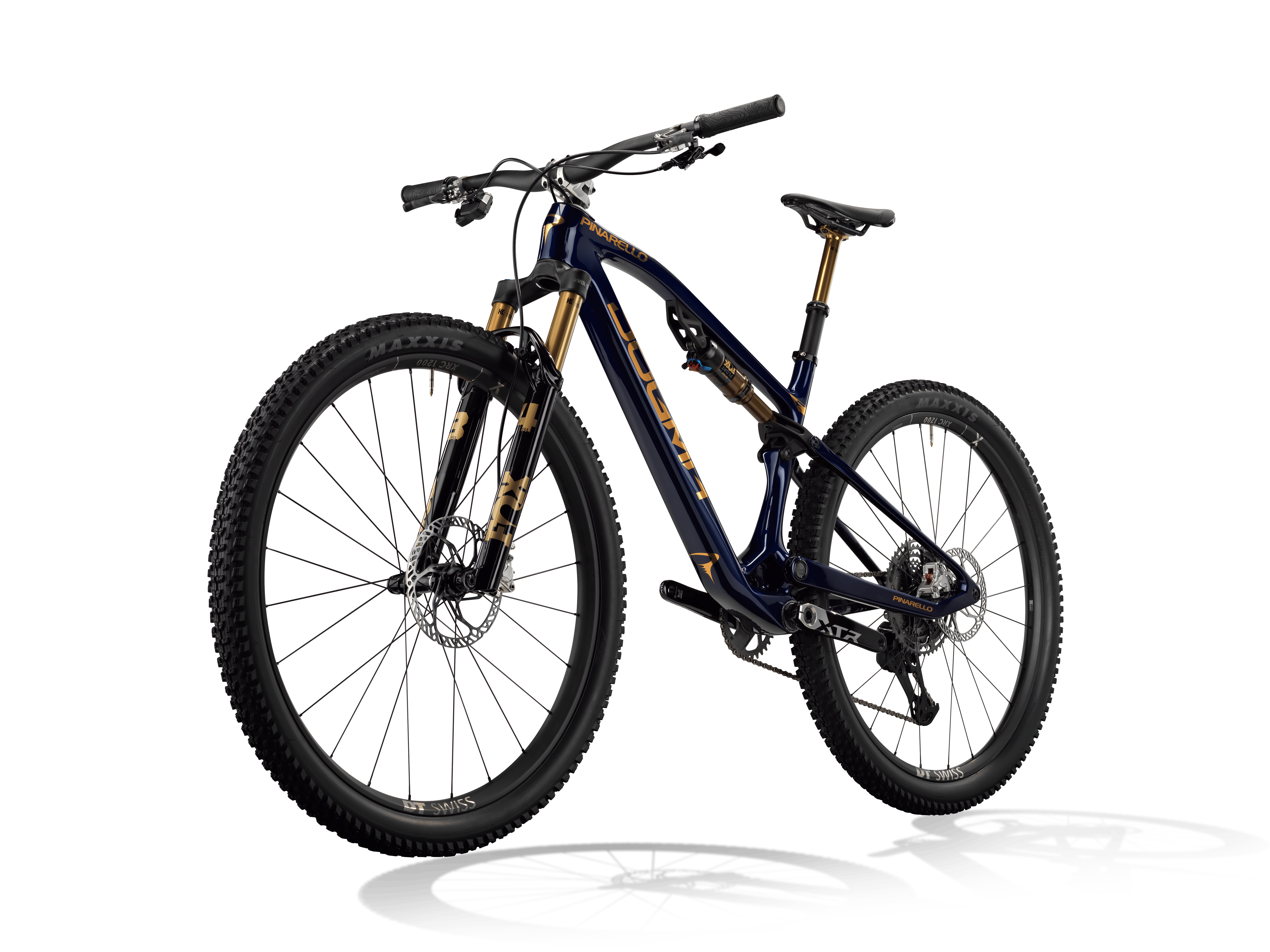

DOGMA XCT

J160 ディスク

SHIMANO XTR Di2 - ARCTIC VEIL

BORN TO COMPETE, DESIGNED TO GO BEYOND

Built on the same championship-winning DNA as the Dogma XCR, the Dogma XCT expands performance beyond the race tape. It retains the efficiency, responsiveness and precision of a true race bike while adding greater control, comfort and capability for marathon, downcountry and long-distance riding. Designed for longer, rougher and more demanding terrain, the XCT is built to keep riders faster for longer.

イノベーション

UNIQUE BOTTOM BRACKET AREA
FLEX STAYS
SPLIT REAR TRIANGLE
KINEMATICS
ADJUSTABLE TRAVEL
ASIMMETRY
COCKPIT

UNIQUE BOTTOM BRACKET AREA

This frame delivers exceptional stiffness in the rear triangle and bottom bracket area, thanks to an oversized bearing and the rear triangle pivot design.

FLEX STAYS

Having only three pivot points in the rear triangle would normally limit rear-wheel travel, but the bike’s unique geometry and the integration of flex stays work together to allow a more direct suspension movement.

These innovations also help reduce weight, increase stiffness, and provide a more direct connection between the rider and the rear wheel.

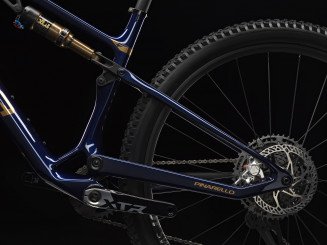

SPLIT REAR TRIANGLE

The rear triangle is made up of two separate half-sections mounted around a main pivot, using a unique design in which two pivots are co-molded directly into the rear triangle.

This eliminates the need for any additional connection between the two rear sections, allowing for shorter chainstays and delivering improved handling and responsiveness. It also removes critical mud-collection areas and enables the use of wider tires, giving riders a broader range of setup options.

KINEMATICS

The rear suspension kinematics have been developed to work together with the integrated flex stays, maximizing power transfer while pedalling, providing optimal compression and extension on technical descents, and giving the rider maximum control. Friction at each pivot point has also been minimized through a combination of bearings and bushings.

Anti-rise and anti-squat values have also been carefully studied to create a bike that performs equally well on the steepest climbs and the most technical descents.

ADJUSTABLE TRAVEL

The ability to reposition the suspension mounting point beneath the top tube allows different rear shock configurations to be used, accommodating a wide range of travel options and enabling riders to adapt the bike to the specific demands of each ride.

ASIMMETRY

The rear triangle features a patented asymmetric design with a reinforced left side, allowing the bike to counterbalance the greater forces generated on the drivetrain side. This results in more balanced power transfer, improved speed, and increased traction.

Asymmetry has also been maximized across other areas of the frame, with the chainstays and seatstays taking this concept even further to withstand the powerful accelerations generated in elite cross-country racing.

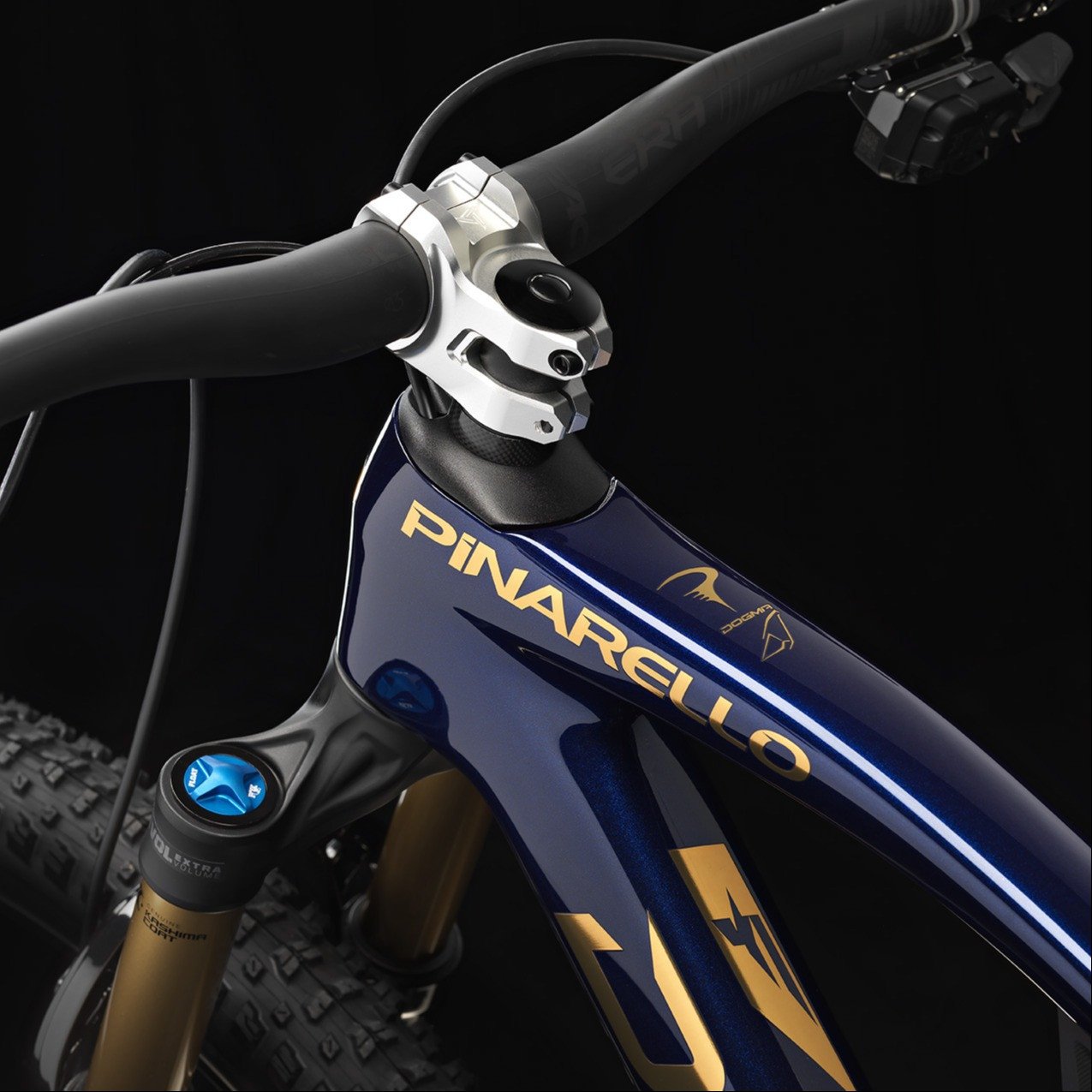

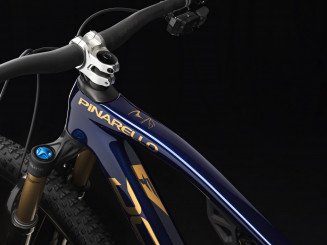

COCKPIT

The Dogma XCT features a separate handlebar and stem configuration, developed to provide greater control and a wider range of fit and setup options. This solution allows riders to fine-tune handlebar width, stem length and front-end position according to terrain, riding style and personal preference, while maintaining precise handling and a clean cockpit layout

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__d04ffb4be8375955b2203fff3a145429.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__d04ffb4be8375955b2203fff3a145429.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__d04ffb4be8375955b2203fff3a145429.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__d04ffb4be8375955b2203fff3a145429.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__d04ffb4be8375955b2203fff3a145429.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__d04ffb4be8375955b2203fff3a145429.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__d04ffb4be8375955b2203fff3a145429.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__d04ffb4be8375955b2203fff3a145429.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__d04ffb4be8375955b2203fff3a145429.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__d04ffb4be8375955b2203fff3a145429.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__d04ffb4be8375955b2203fff3a145429.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__d04ffb4be8375955b2203fff3a145429.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__d04ffb4be8375955b2203fff3a145429.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__d04ffb4be8375955b2203fff3a145429.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__d04ffb4be8375955b2203fff3a145429.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__d04ffb4be8375955b2203fff3a145429.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__d04ffb4be8375955b2203fff3a145429.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__d04ffb4be8375955b2203fff3a145429.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__d04ffb4be8375955b2203fff3a145429.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__d04ffb4be8375955b2203fff3a145429.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__d04ffb4be8375955b2203fff3a145429.webp 4323w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__2eb7c53f374987723a00621ea6f98a95.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__2eb7c53f374987723a00621ea6f98a95.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__2eb7c53f374987723a00621ea6f98a95.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__2eb7c53f374987723a00621ea6f98a95.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__2eb7c53f374987723a00621ea6f98a95.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__2eb7c53f374987723a00621ea6f98a95.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__2eb7c53f374987723a00621ea6f98a95.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__2eb7c53f374987723a00621ea6f98a95.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__2eb7c53f374987723a00621ea6f98a95.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__2eb7c53f374987723a00621ea6f98a95.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__2eb7c53f374987723a00621ea6f98a95.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__2eb7c53f374987723a00621ea6f98a95.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__2eb7c53f374987723a00621ea6f98a95.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__2eb7c53f374987723a00621ea6f98a95.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__2eb7c53f374987723a00621ea6f98a95.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__2eb7c53f374987723a00621ea6f98a95.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__2eb7c53f374987723a00621ea6f98a95.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__2eb7c53f374987723a00621ea6f98a95.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__2eb7c53f374987723a00621ea6f98a95.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__2eb7c53f374987723a00621ea6f98a95.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__2eb7c53f374987723a00621ea6f98a95.webp 2428w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__e58aed78678fcf0886341691b0fe7b8e.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__e58aed78678fcf0886341691b0fe7b8e.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__e58aed78678fcf0886341691b0fe7b8e.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__e58aed78678fcf0886341691b0fe7b8e.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__e58aed78678fcf0886341691b0fe7b8e.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__e58aed78678fcf0886341691b0fe7b8e.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__e58aed78678fcf0886341691b0fe7b8e.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__e58aed78678fcf0886341691b0fe7b8e.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__e58aed78678fcf0886341691b0fe7b8e.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__e58aed78678fcf0886341691b0fe7b8e.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__e58aed78678fcf0886341691b0fe7b8e.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__e58aed78678fcf0886341691b0fe7b8e.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__e58aed78678fcf0886341691b0fe7b8e.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__e58aed78678fcf0886341691b0fe7b8e.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__e58aed78678fcf0886341691b0fe7b8e.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__e58aed78678fcf0886341691b0fe7b8e.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__e58aed78678fcf0886341691b0fe7b8e.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__e58aed78678fcf0886341691b0fe7b8e.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__e58aed78678fcf0886341691b0fe7b8e.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__e58aed78678fcf0886341691b0fe7b8e.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__e58aed78678fcf0886341691b0fe7b8e.webp 2428w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__0789c9bbfae35297b451db60c8b90fe0.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__0789c9bbfae35297b451db60c8b90fe0.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__0789c9bbfae35297b451db60c8b90fe0.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__0789c9bbfae35297b451db60c8b90fe0.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__0789c9bbfae35297b451db60c8b90fe0.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__0789c9bbfae35297b451db60c8b90fe0.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__0789c9bbfae35297b451db60c8b90fe0.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__0789c9bbfae35297b451db60c8b90fe0.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__0789c9bbfae35297b451db60c8b90fe0.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__0789c9bbfae35297b451db60c8b90fe0.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__0789c9bbfae35297b451db60c8b90fe0.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__0789c9bbfae35297b451db60c8b90fe0.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__0789c9bbfae35297b451db60c8b90fe0.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__0789c9bbfae35297b451db60c8b90fe0.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__0789c9bbfae35297b451db60c8b90fe0.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__0789c9bbfae35297b451db60c8b90fe0.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__0789c9bbfae35297b451db60c8b90fe0.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__0789c9bbfae35297b451db60c8b90fe0.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__0789c9bbfae35297b451db60c8b90fe0.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__0789c9bbfae35297b451db60c8b90fe0.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__0789c9bbfae35297b451db60c8b90fe0.webp 2428w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__9e713fc67cabd1151a85f16b15968702.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__9e713fc67cabd1151a85f16b15968702.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__9e713fc67cabd1151a85f16b15968702.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__9e713fc67cabd1151a85f16b15968702.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__9e713fc67cabd1151a85f16b15968702.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__9e713fc67cabd1151a85f16b15968702.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__9e713fc67cabd1151a85f16b15968702.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__9e713fc67cabd1151a85f16b15968702.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__9e713fc67cabd1151a85f16b15968702.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__9e713fc67cabd1151a85f16b15968702.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__9e713fc67cabd1151a85f16b15968702.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__9e713fc67cabd1151a85f16b15968702.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__9e713fc67cabd1151a85f16b15968702.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__9e713fc67cabd1151a85f16b15968702.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__9e713fc67cabd1151a85f16b15968702.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__9e713fc67cabd1151a85f16b15968702.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__9e713fc67cabd1151a85f16b15968702.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__9e713fc67cabd1151a85f16b15968702.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__9e713fc67cabd1151a85f16b15968702.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__9e713fc67cabd1151a85f16b15968702.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__9e713fc67cabd1151a85f16b15968702.webp 4323w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__1bc1ba586152a2fe104c6430d2c00352.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__1bc1ba586152a2fe104c6430d2c00352.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__1bc1ba586152a2fe104c6430d2c00352.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__1bc1ba586152a2fe104c6430d2c00352.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__1bc1ba586152a2fe104c6430d2c00352.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__1bc1ba586152a2fe104c6430d2c00352.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__1bc1ba586152a2fe104c6430d2c00352.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__1bc1ba586152a2fe104c6430d2c00352.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__1bc1ba586152a2fe104c6430d2c00352.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__1bc1ba586152a2fe104c6430d2c00352.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__1bc1ba586152a2fe104c6430d2c00352.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__1bc1ba586152a2fe104c6430d2c00352.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__1bc1ba586152a2fe104c6430d2c00352.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__1bc1ba586152a2fe104c6430d2c00352.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__1bc1ba586152a2fe104c6430d2c00352.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__1bc1ba586152a2fe104c6430d2c00352.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__1bc1ba586152a2fe104c6430d2c00352.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__1bc1ba586152a2fe104c6430d2c00352.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__1bc1ba586152a2fe104c6430d2c00352.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__1bc1ba586152a2fe104c6430d2c00352.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__1bc1ba586152a2fe104c6430d2c00352.webp 4323w

ジオメトリー

CF	SIZE	L	I	A	A1	B	F	P	T	D	R	G	REACH	STACK
405	S	578	151.3	75.5	69.75	67.5	699.1	427.5	85	46	44	511	426.5	584.9
435	M	608	153	75.45	69.75	67.5	729.2	427.5	90	46	44	511	455	589.5
470	L	634	159	75.3	69.75	68	750	427.5	105	46	44	511	475	605.8
500	XL	659.1	164.1	75.15	69.75	68	775.6	427.5	120	46	44	511	495	619.7

すべてのコンポーネント

FRAME SET

FRAME

TorayCa M40J

SHOCKS

FRONT SUSPENSION

FOX 34 FACTORY SC KASHIMA 120MM

REAR SUSPENSION

FOX FLOAT SL FACTORY KASHIMA 210X50

DRIVETRAIN

CRANKSET AND CHAINRINGS

SHIMANO XTR

REAR DERAILLEUR

SHIMANO XTR

CASSETTE

SHIMANO XTR

CHAIN

SHIMANO XTR

COCKPIT

HANDLEBAR

RACE FACE ERA CARBON

STEM

RACE FACE TURBINE SL

GRIPS

RACE FACE Half Nelson

SADDLE

MOST Lynx 2.0 XC

DROPPER POST

FOX TRANSFER 30.9, S 100MM, M 125MM, L150MM, XL175MM

WHEELS AND TIRES

TYRES DISC

MAXXIS REKON EXO 29X2.4

WHEELSET DISC

DT Swiss XRC 1200

ACCESSORIES AND NOTES

BOTTLES AND BOTTLE CAGES

Bottlecage TRAP PACF 74mm Black

モデルを比較

DOGMA XCT

DOGMA XCR

	DOGMA XCT	DOGMA XCR
フレームサイズ	4	4
フレーム	TorayCa M40J	TorayCa M40J
グループセット	SHIMANO XTR Di2	SRAM XX SL AXS POWERMETER
ディスクホイールセット	DT Swiss XRC 1200
