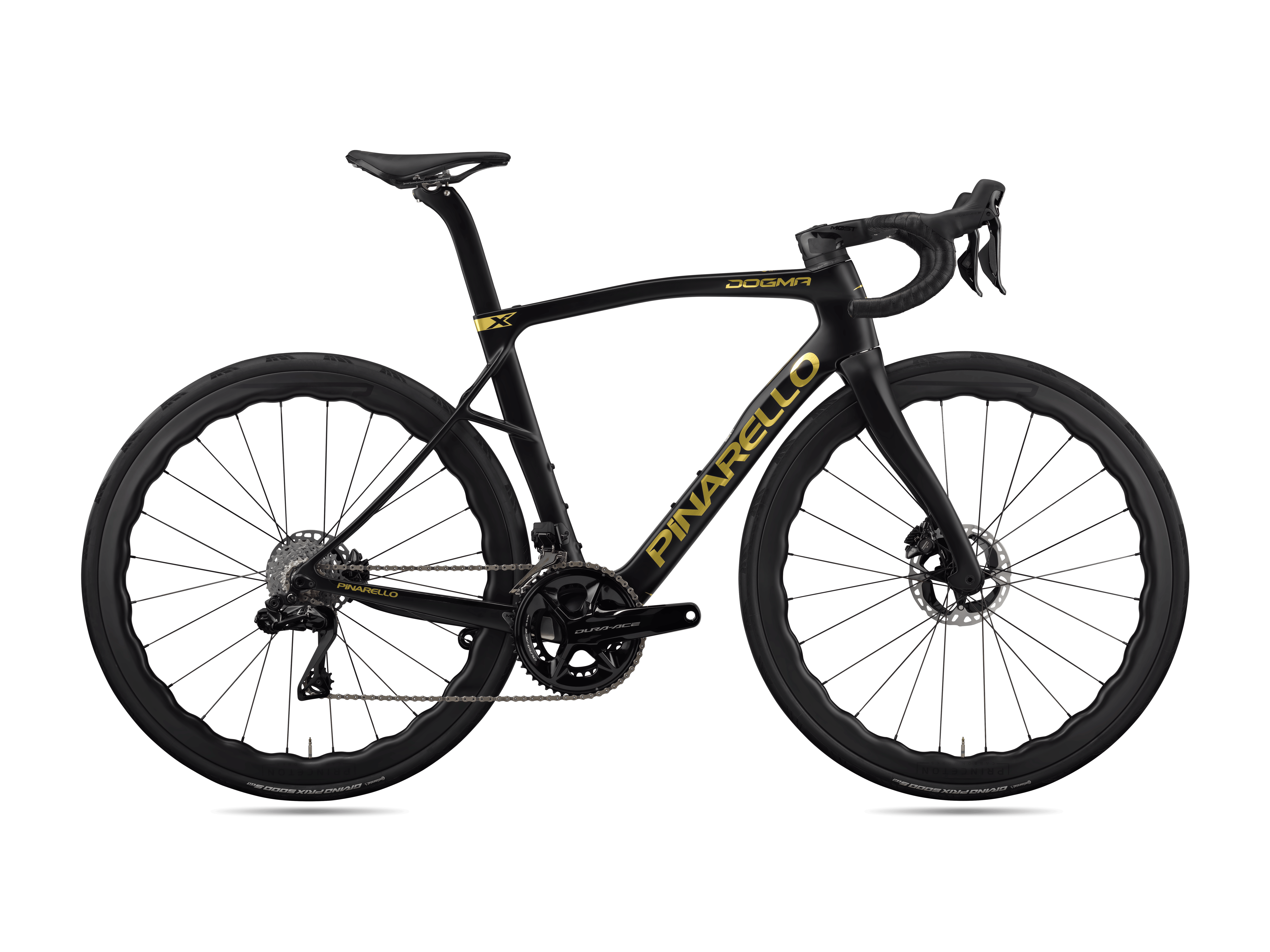

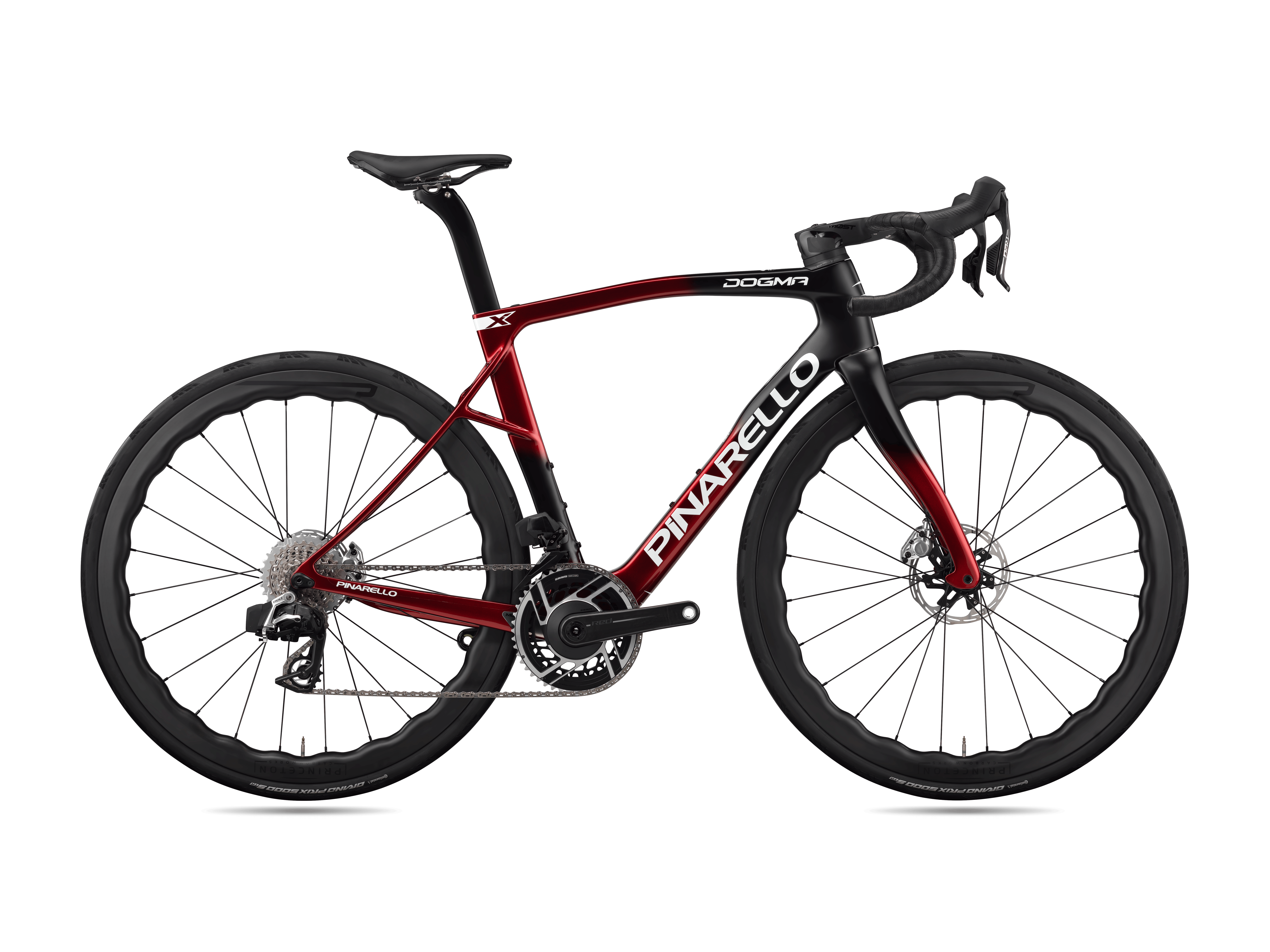

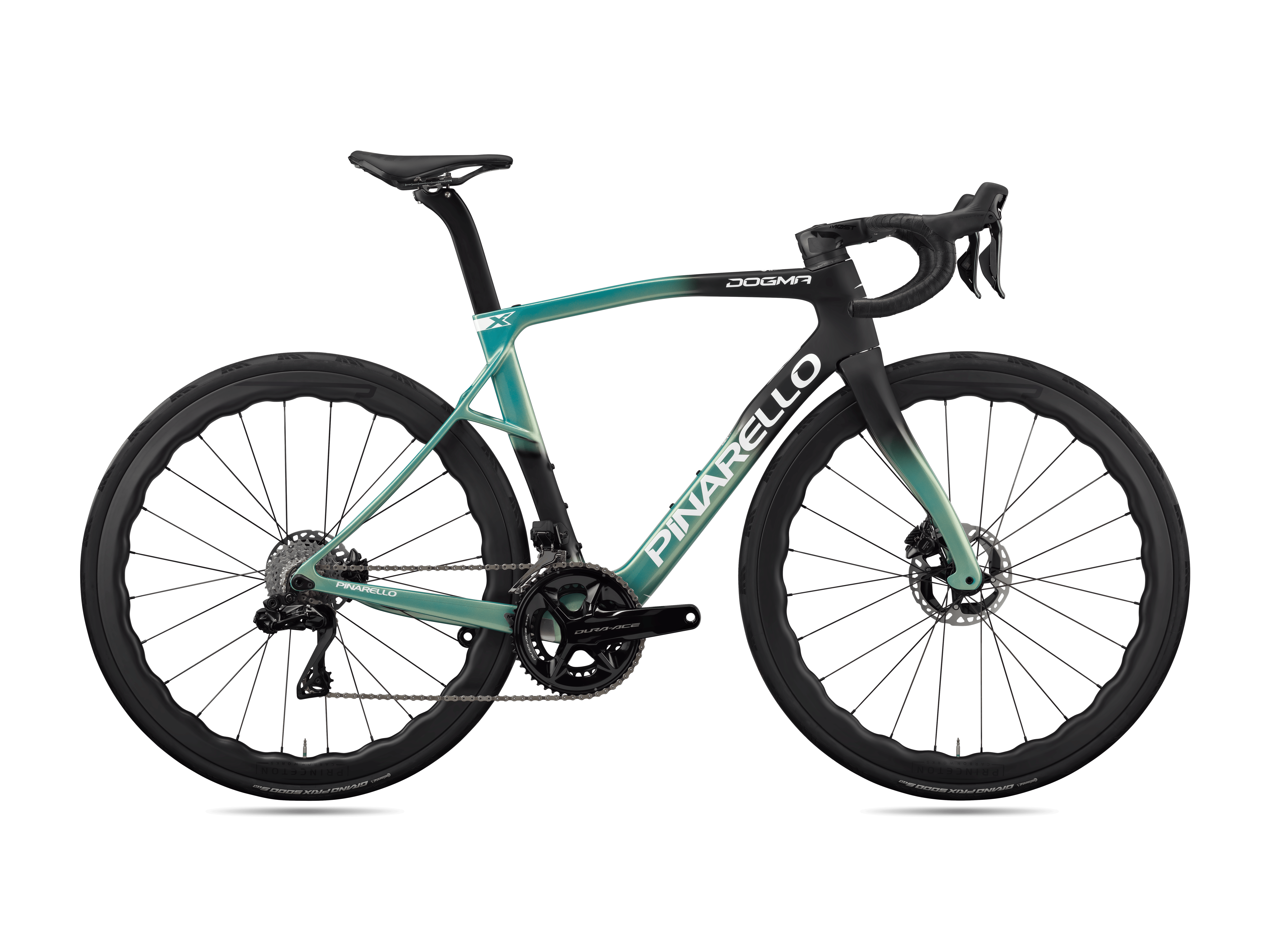

DOGMA X SUPER RECORD WRL

DOGMA X SUPER RECORD WRL

E203 DISC
SUPER RECORD WRL - XOLAR GREEN
E201 DISC
SUPER RECORD WRL - XOLAR BLUE
E202 DISC
SUPER RECORD WRL - XOLAR BLACK
E200 DISC
SUPER RECORD WRL - XOLAR SUN

* groupset/wheels on the picture might differ from bike specification

PURE CYCLING MULTIPLIED BY X

Inspired by riders who enjoy long days in the saddle, the DOGMA X is about more than just performance; the bike has been engineered from the ground up to heighten the emotional experience of cycling and reshape how we think about endurance and speed.

It will redefine how we think about performance, offering real-world comfort.

DOGMA X SUPER RECORD WRL
Innovation
CARBON T1100 1K
X STAYS
ASYMMETRIC FRAME PINARELLO X
ENDURANCE GEOMETRY
TYRE CLEARANCE UP TO 35MM
CARBON <span>T1100 1K</span>



milestones

CARBON T1100 1K

High tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.


ENDURANCE <span>GEOMETRY</span>





ENDURANCE GEOMETRY

A brand new approach that strikes the perfect balance between high-calibre performance and real-world comfort.

X STAYS



X STAYS

A new Pinarello technology capable of absorbing vibrations maintaining a light weight frame and a very reactive BB stiffness

ASYMMETRIC FRAME <span>PINARELLO X</span>





milestones

ASYMMETRIC FRAME PINARELLO X

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

TYRE CLEARANCE <span> UP TO 35MM </span>



TYRE CLEARANCE UP TO 35MM

35mm tires to unlock the frames’ true potential in terms of both comfort and speed.

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 505 74.4 70 422 107 77 47 375 349.3 524.2
450 465 515 74.4 70 422 119 77 47 375 358.1 535.5
465 500 525 74 70.5 422 124 77 47 375 365.4 542.1
485 515 535 73.7 71 422 129 77 47 375 371.7 548.6
500 530 545 73.7 71.5 422 138 77 47 375 379.4 559
510 540 552 73.4 72 422 146 77 47 375 381.2 568.4
520 550 557 73.4 72 422 157 77 47 375 383 578.9
525 560 565 73 72.5 422 165 77 47 375 384.6 588.4
540 575 575 73 72.8 422 178 77 47 375 390.8 601.7
560 595 595 72.4 73 422 214 72 47 375 395.3 632
600 620 620 72 73 422 254 72 47 375 403.8 670.3
DOGMA X SUPER RECORD WRL Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
Campagnolo Super Record WRL 12S
FRONT DERAILLEUR
Campagnolo Super Record WRL 12S
REAR DERAILLEUR
Campagnolo Super Record WRL 12S
CASSETTE
Campagnolo Super Record WRL 12S
CHAIN
Campagnolo Super Record WRL 12S
BOTTOM BRACKET
campagnolo super record
BRAKES
FRONT BRAKE DISC
Campagnolo Super Record 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Campagnolo Super Record 2 pistons caliper, 160mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Light
BAR TAPE
Bar Tape MOST Ultragrip evo 3mm - Black
SADDLE
Most Lynx Ultrafast Superflow L Carbon Large 145mm
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
WHEELS AND TIRES
TYRES DISC
Pirelli P ZERO Race TLR 35-622
WHEELSET DISC
Campagnolo Bora WTO
AXLES DISC
MOST Ultralight Custom Axle 12x100 & 12x142, Tool-free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

COMPARE MODELS

DOGMA X SUPER RECORD WRL
DOGMA X SUPER RECORD WRL
DOGMA F SUPER RECORD WRL
DOGMA F SUPER RECORD WRL
DOGMA X DURA ACE Di2
DOGMA X DURA ACE Di2
DOGMA X SUPER RECORD WRL
DOGMA X SUPER RECORD WRL
DOGMA F SUPER RECORD WRL
DOGMA F SUPER RECORD WRL
DOGMA X DURA ACE Di2
DOGMA X DURA ACE Di2
FRAME SIZES 11 11 11
FRAME TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
GROUPSET SUPER RECORD WRL Super Record WRL DURA ACE Di2
WHEELSET DISC Campagnolo Bora WTO Campagnolo Bora WTO PRINCETON GRIT 4540 DB
RIM
