DOGMA F SRAM RED ETAP AXS
Overview Gallery Geometries Components
Bikes / Road / Competition / Dogma F / DOGMA F SRAM RED ETAP AXS

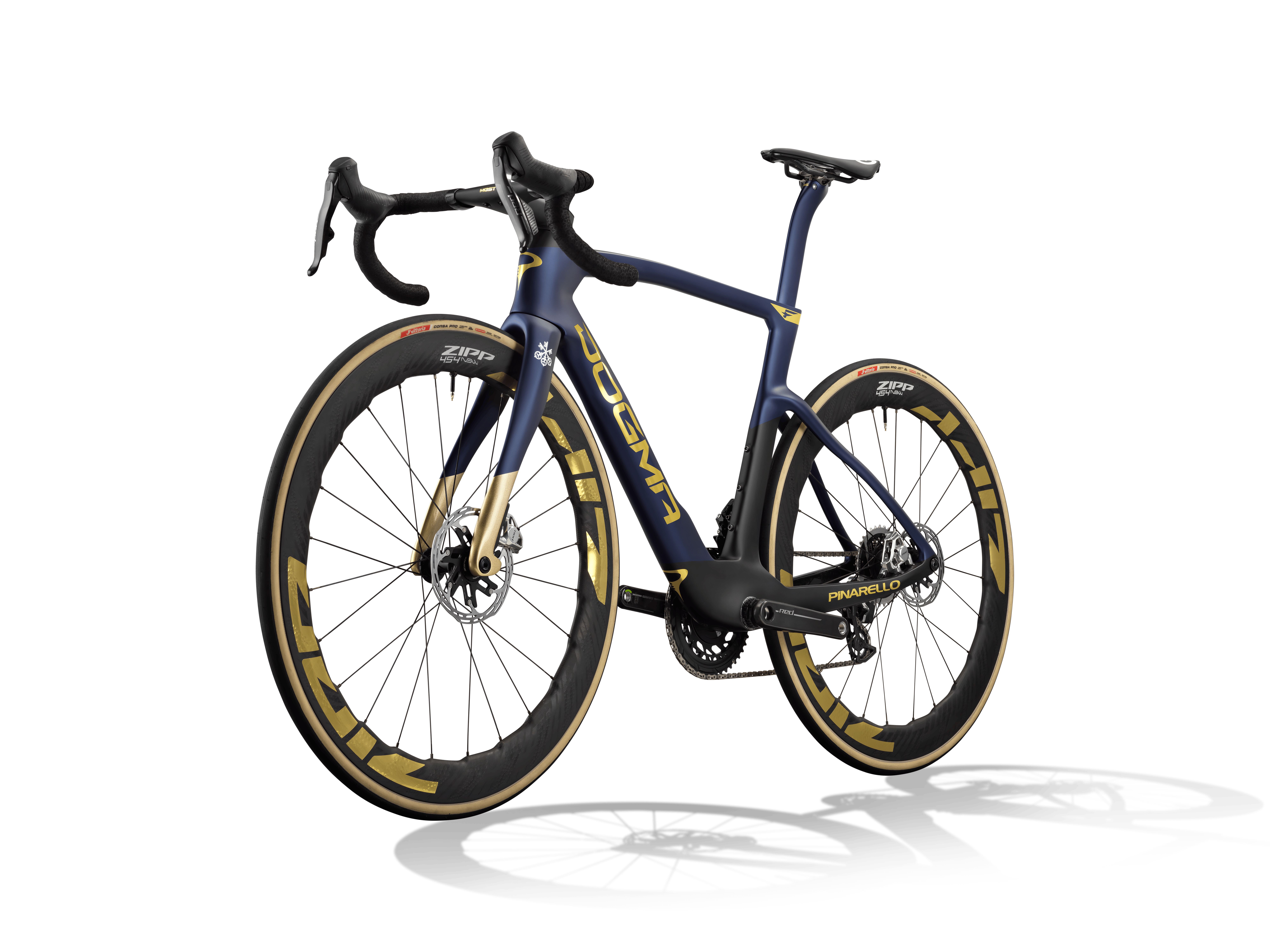

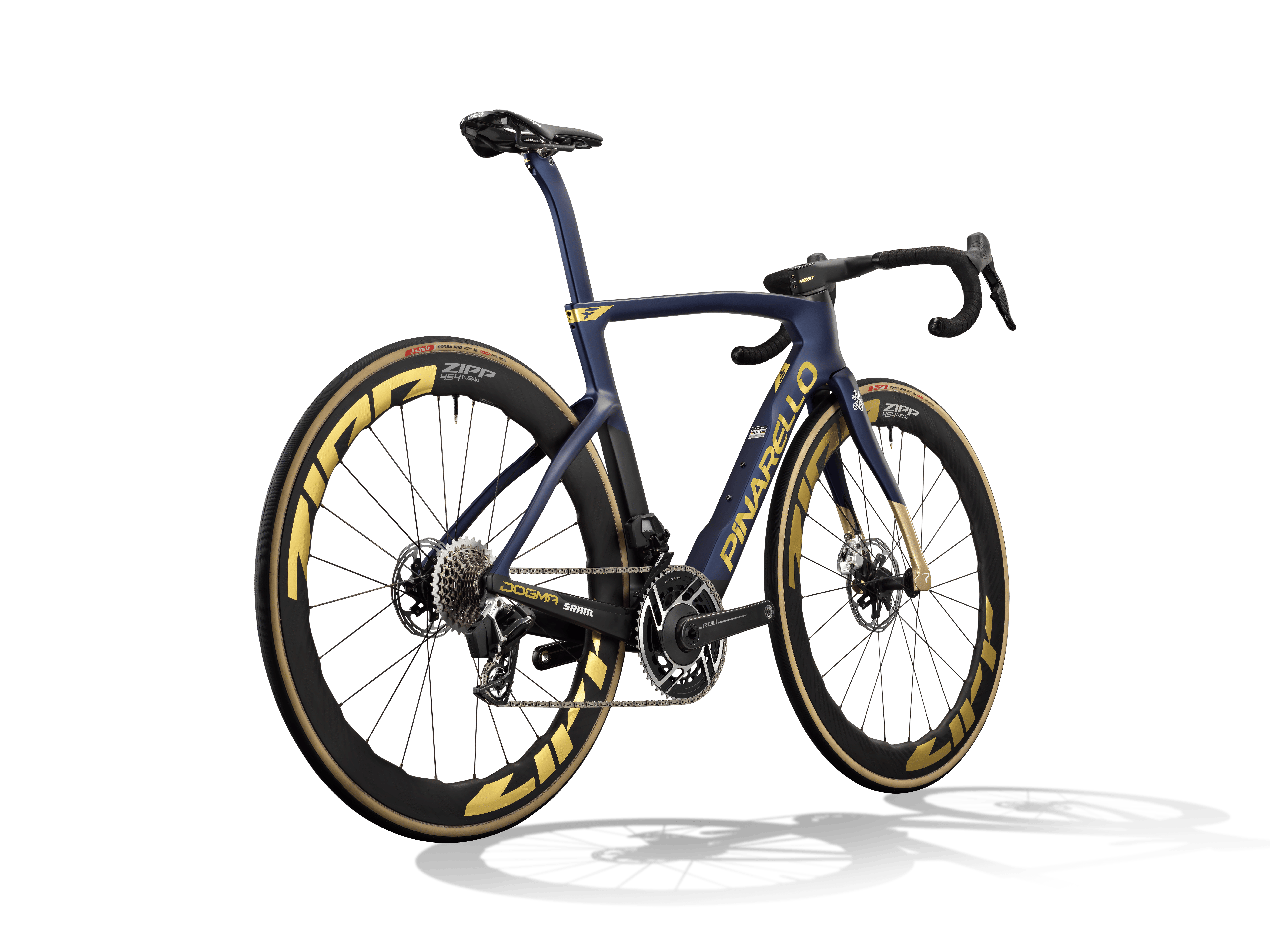

DOGMA F SRAM RED ETAP AXS

DOGMA F SRAM RED ETAP AXS Pinarello
G112 DISC
SRAM RED ETAP AXS - LUXTER BLUE
G110 DISC
SRAM RED ETAP AXS - LUXTER RED GOLD
G114 DISC
SRAM RED ETAP AXS - LUXTER VENICE
G113 DISC
SRAM RED ETAP AXS - EDGE CRYSTAL WHITE
G111 DISC
SRAM RED ETAP AXS - BLACK ON BLACK
G115 DISC
SRAM RED ETAP AXS - AURIK YELLOW
DOGMA F - SRAM RED ETAP AXS - LUXTER BLUE DOGMA F - SRAM RED ETAP AXS - LUXTER RED GOLD DOGMA F - SRAM RED ETAP AXS - LUXTER VENICE DOGMA F - SRAM RED ETAP AXS - EDGE CRYSTAL WHITE DOGMA F - SRAM RED ETAP AXS - BLACK ON BLACK DOGMA F - SRAM RED ETAP AXS - AURIK YELLOW
DOGMA F SRAM RED ETAP AXS DOGMA F SRAM RED ETAP AXS DOGMA F SRAM RED ETAP AXS

DESIGN THE EXCEPTIONAL

We’ve always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.

DOGMA F SRAM RED ETAP AXS
Innovation
CARBON M40X
DOWN TUBE
NEW AERO-KEEL BB
TOP TUBE
HEADSET
THRU AXLES
NEW ONDA FORK
INTEGRATED SEAT POST CLAMP
NEW TALON FAST
Video New Dogma F

PLAY VIDEO



CARBON M40X

The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.





DOWN TUBE

The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag

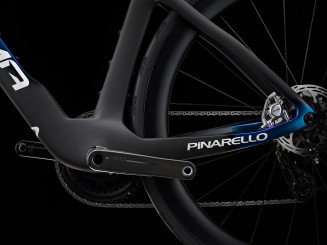

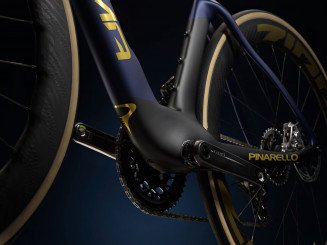

NEW AERO-KEEL BB

Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.

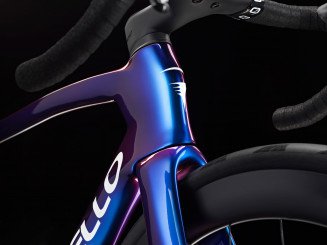

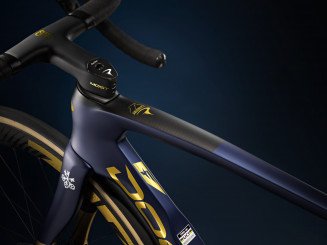

TOP TUBE

Our unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.

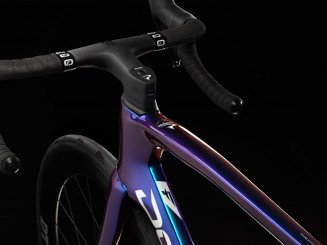

HEADSET

To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.





THRU AXLES

New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame

NEW <span>ONDA FORK</span>



NEW ONDA FORK

The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.





INTEGRATED SEAT POST CLAMP

Our seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.



NEW TALON FAST

The new Talon Ultra Fast integrated cockpit is lighter and more aero. It is designed with a natural twisted lever position to allow our riders to find a more aero position in a safe manner.

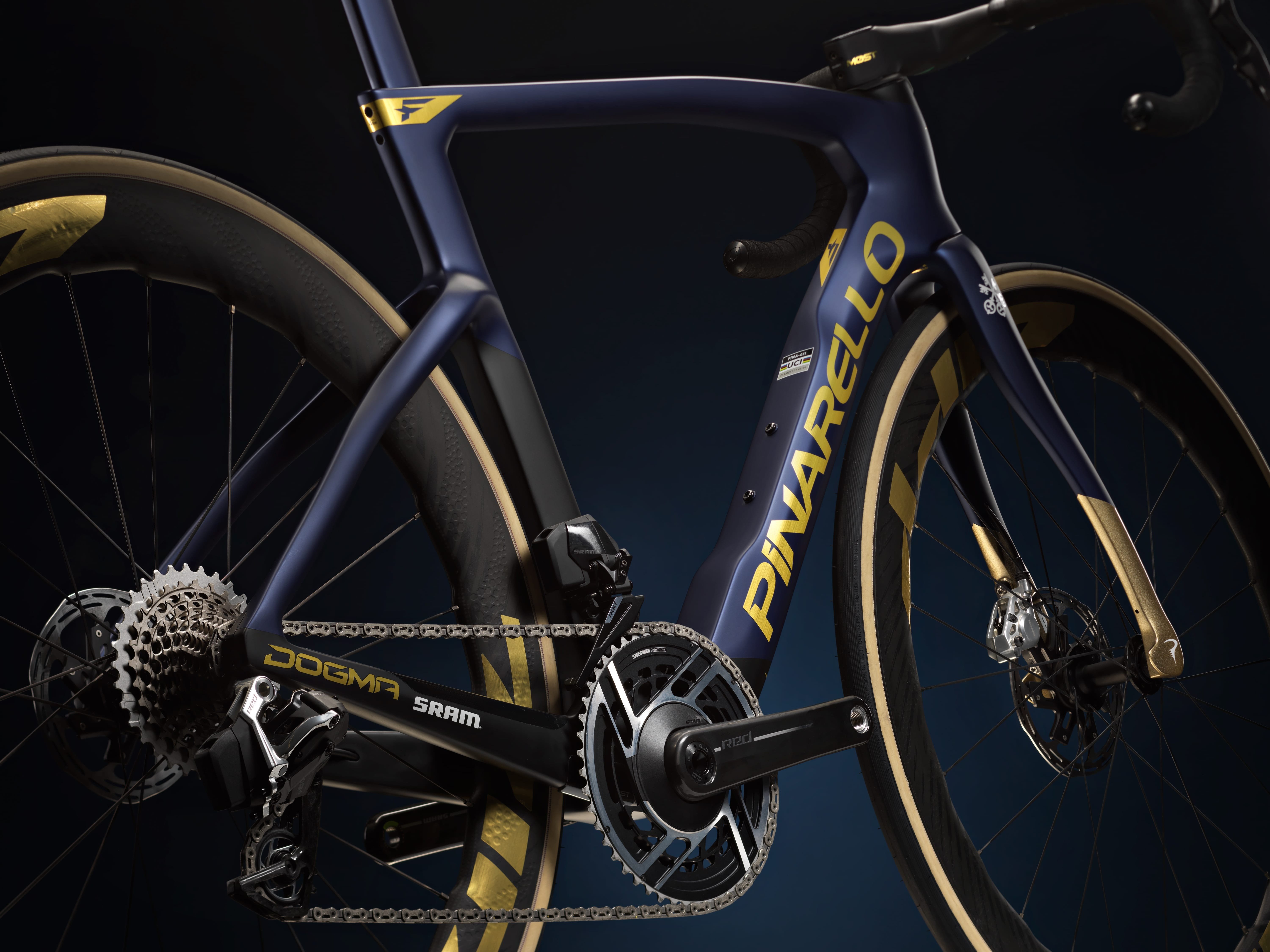

DOGMA F SRAM RED ETAP AXS
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__3594047f183c215d9be783e1f4903c5a.jpg 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__3594047f183c215d9be783e1f4903c5a.jpg 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__3594047f183c215d9be783e1f4903c5a.jpg 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__3594047f183c215d9be783e1f4903c5a.jpg 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__3594047f183c215d9be783e1f4903c5a.jpg 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__3594047f183c215d9be783e1f4903c5a.jpg 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__3594047f183c215d9be783e1f4903c5a.jpg 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__3594047f183c215d9be783e1f4903c5a.jpg 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__3594047f183c215d9be783e1f4903c5a.jpg 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__3594047f183c215d9be783e1f4903c5a.jpg 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__3594047f183c215d9be783e1f4903c5a.jpg 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__3594047f183c215d9be783e1f4903c5a.jpg 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__3594047f183c215d9be783e1f4903c5a.jpg 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__3594047f183c215d9be783e1f4903c5a.jpg 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__3594047f183c215d9be783e1f4903c5a.jpg 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__3594047f183c215d9be783e1f4903c5a.jpg 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__3594047f183c215d9be783e1f4903c5a.jpg 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__3594047f183c215d9be783e1f4903c5a.jpg 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__3594047f183c215d9be783e1f4903c5a.jpg 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__3594047f183c215d9be783e1f4903c5a.jpg 2882w
DOGMA F SRAM RED ETAP AXS
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__8eee9f6949a7a7bcbd65dc1de7645e77.jpg 2882w
DOGMA F SRAM RED ETAP AXS
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__e5b32e061400e93b2825438961b1a12c.jpg 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__e5b32e061400e93b2825438961b1a12c.jpg 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__e5b32e061400e93b2825438961b1a12c.jpg 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__e5b32e061400e93b2825438961b1a12c.jpg 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__e5b32e061400e93b2825438961b1a12c.jpg 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__e5b32e061400e93b2825438961b1a12c.jpg 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__e5b32e061400e93b2825438961b1a12c.jpg 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__e5b32e061400e93b2825438961b1a12c.jpg 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__e5b32e061400e93b2825438961b1a12c.jpg 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__e5b32e061400e93b2825438961b1a12c.jpg 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__e5b32e061400e93b2825438961b1a12c.jpg 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__e5b32e061400e93b2825438961b1a12c.jpg 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__e5b32e061400e93b2825438961b1a12c.jpg 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__e5b32e061400e93b2825438961b1a12c.jpg 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__e5b32e061400e93b2825438961b1a12c.jpg 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__e5b32e061400e93b2825438961b1a12c.jpg 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__e5b32e061400e93b2825438961b1a12c.jpg 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__e5b32e061400e93b2825438961b1a12c.jpg 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__e5b32e061400e93b2825438961b1a12c.jpg 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__e5b32e061400e93b2825438961b1a12c.jpg 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__e5b32e061400e93b2825438961b1a12c.jpg 2428w
DOGMA F SRAM RED ETAP AXS
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__2bba8a931aea050f630ddb136487c82a.jpg 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__2bba8a931aea050f630ddb136487c82a.jpg 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__2bba8a931aea050f630ddb136487c82a.jpg 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__2bba8a931aea050f630ddb136487c82a.jpg 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__2bba8a931aea050f630ddb136487c82a.jpg 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__2bba8a931aea050f630ddb136487c82a.jpg 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__2bba8a931aea050f630ddb136487c82a.jpg 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__2bba8a931aea050f630ddb136487c82a.jpg 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__2bba8a931aea050f630ddb136487c82a.jpg 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__2bba8a931aea050f630ddb136487c82a.jpg 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__2bba8a931aea050f630ddb136487c82a.jpg 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__2bba8a931aea050f630ddb136487c82a.jpg 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__2bba8a931aea050f630ddb136487c82a.jpg 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__2bba8a931aea050f630ddb136487c82a.jpg 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__2bba8a931aea050f630ddb136487c82a.jpg 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__2bba8a931aea050f630ddb136487c82a.jpg 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__2bba8a931aea050f630ddb136487c82a.jpg 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__2bba8a931aea050f630ddb136487c82a.jpg 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__2bba8a931aea050f630ddb136487c82a.jpg 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__2bba8a931aea050f630ddb136487c82a.jpg 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__2bba8a931aea050f630ddb136487c82a.jpg 2428w
DOGMA F SRAM RED ETAP AXS
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__7bf4a0426616f304d25c425fbde0bba8.jpg 2428w
DOGMA F SRAM RED ETAP AXS
https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__a101a840cf095b6b0a33d792779cddf7.jpg 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__a101a840cf095b6b0a33d792779cddf7.jpg 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__a101a840cf095b6b0a33d792779cddf7.jpg 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__a101a840cf095b6b0a33d792779cddf7.jpg 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__a101a840cf095b6b0a33d792779cddf7.jpg 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__a101a840cf095b6b0a33d792779cddf7.jpg 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__a101a840cf095b6b0a33d792779cddf7.jpg 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__a101a840cf095b6b0a33d792779cddf7.jpg 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__a101a840cf095b6b0a33d792779cddf7.jpg 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__a101a840cf095b6b0a33d792779cddf7.jpg 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__a101a840cf095b6b0a33d792779cddf7.jpg 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__a101a840cf095b6b0a33d792779cddf7.jpg 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__a101a840cf095b6b0a33d792779cddf7.jpg 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__a101a840cf095b6b0a33d792779cddf7.jpg 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__a101a840cf095b6b0a33d792779cddf7.jpg 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__a101a840cf095b6b0a33d792779cddf7.jpg 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__a101a840cf095b6b0a33d792779cddf7.jpg 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__a101a840cf095b6b0a33d792779cddf7.jpg 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__a101a840cf095b6b0a33d792779cddf7.jpg 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__a101a840cf095b6b0a33d792779cddf7.jpg 2882w

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 407 102 67 47 373 351.5 502
450 465 515 74.4 70.5 407 109 72 47 373 365.4 517.3
465 500 525 74 71.4 407 114 72 47 373 372.2 525.2
485 515 535 73.7 72 407 119 72 47 373 378.2 532.1
500 530 545 73.7 72.5 407 128 72 47 373 383.3 542.4
510 540 550 73.4 72.8 408 136 72 47 373 385.3 551
520 550 557 73.4 72.8 408 147 72 47 373 389.2 561.5
525 560 565 73 73.2 409 154.5 72 47 373 390.8 570.1
540 575 575 73 73.7 409 168 72 47 373 396.7 584.8
560 595 587 72.4 73.4 409 204 67 47 373 393.4 613.2
600 620 620 72 73.4 411 244 67 47 373 410 651.6
DOGMA F SRAM RED ETAP AXS Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK
NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
WEIGHT
6.63kg. Weight in size 53, SRAM RED Etap, Princeton Peak 4550 wheels, w/o pedals and w/o bottles
DRIVETRAIN
CRANKSET AND CHAINRINGS
SRAM Red ETAP AXS 12S
FRONT DERAILLEUR
SRAM Red ETAP AXS 12S
REAR DERAILLEUR
SRAM Red ETAP AXS 12S
CASSETTE
Sram Red XG-1290
BOTTOM BRACKET
SRAM Red
BRAKES
FRONT BRAKE DISC
Sram Red 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
Sram Red 2 pistons caliper, 160mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Fast
BAR TAPE
most bar tape
SADDLE
Most Lynx Ultrafast Superflow L Carbon Large 145mm
SEATPOST
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
WHEELS AND TIRES
TYRES DISC
Continental Gran Prix 5000S TR28-622
WHEELSET DISC
PRINCETON PEAK 4550 DB*
AXLES DISC
NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

* also available with DTSWISS ARC 1400

New Dogma F gallery
New Dogma F gallery
New Dogma F gallery
New Dogma F gallery
New Dogma F gallery

COMPARE MODELS

DOGMA F SRAM RED ETAP AXS
DOGMA F SRAM RED ETAP AXS
DOGMA F DURA ACE Di2
DOGMA F DURA ACE Di2
DOGMA F SUPER RECORD WRL
DOGMA F SUPER RECORD WRL
PINARELLO F9 SRAM RED AXS
PINARELLO F9 SRAM RED AXS
DOGMA F SRAM RED ETAP AXS
DOGMA F SRAM RED ETAP AXS 		DOGMA F DURA ACE Di2
DOGMA F DURA ACE Di2 		DOGMA F SUPER RECORD WRL
DOGMA F SUPER RECORD WRL 		PINARELLO F9 SRAM RED AXS
PINARELLO F9 SRAM RED AXS
FRAME SIZES 11 11 11 9
FRAME TorayCa M40X, TiCR™ Cable Routing, Italian BB TorayCa M40X, TiCR™ Cable Routing, Italian BB TorayCa M40X, TiCR™ Cable Routing, Italian BB TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
GROUPSET SRAM RED ETAP AXS DURA ACE Di2 SUPER RECORD WRL SRAM RED AXS
WHEELSET DISC PRINCETON PEAK 4550 DB* PRINCETON PEAK 4550 DB* Campagnolo Bora WTO MOST Ultrafast 40*
RIM
