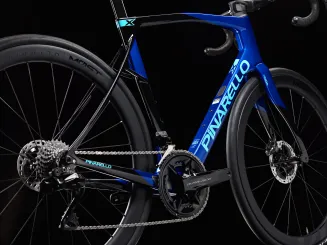

PINARELLO X9 SHIMANO DURA ACE Di2

PINARELLO X9 SHIMANO DURA ACE Di2

E330 DISC
SHIMANO DURA ACE Di2 - XPEED GOLD

WHERE CYCLING MEETS EMOTIONS

These bikes have been specifically designed to maximise rider comfort and vibration absorption, thanks to the innovative use of carbon fiber layup and a redesigned rear triangle.

PINARELLO X9 SHIMANO DURA ACE Di2
Innovation
CARBON T900 UD
X STAYS
ASYMMETRIC FRAME
TYRE CLEARANCE UP TO 35MM
ENDURANCE+ GEOMETRY
CARBON <span>T900 UD</span>



milestones

CARBON T900 UD

The right balance between reactivity, dampening capabilities and lightness for competition.

ENDURANCE+ <span>GEOMETRY</span>





ENDURANCE+ GEOMETRY

Higher stack and a more compact reach, promoting a relaxed riding position that allows bike fitters to accurately fit all kinds of cyclists.

X STAYS



X STAYS

A new Pinarello technology capable of absorbing vibrations maintaining a light weight frame and a very reactive BB stiffness

ASYMMETRIC <span>FRAME</span>





milestones

ASYMMETRIC FRAME

For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

TYRE CLEARANCE <span> UP TO 35MM </span>



TYRE CLEARANCE UP TO 35MM

35mm tires to unlock the frames’ true potential in terms of both comfort and speed.

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 492 75.25 70 422 123 67 52 375 341.9 527.5
450 460 509 74.5 70.5 422 128 72 52 375 352.1 539.2
470 490 525 74 71 422 140 72 52 375 361.9 552.4
495 515 536 73.75 71.5 422 149 72 47 375 368.5 564.4
510 530 545 73.5 72 422 159 72 47 375 372.5 575.8
525 545 555 73.25 72.25 422 171 72 47 375 376.7 588.2
540 560 565 73 72.5 422 185 72 47 375 380.2 602.4
560 580 577 72.75 72.5 422 209 67 47 375 384.1 620.3
590 600 590 72.5 72.5 422 230 67 47 375 388.1 640.4
PINARELLO X9 SHIMANO DURA ACE Di2 Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano Dura Ace Di2 FD-R9200 12s
FRONT DERAILLEUR
Shimano Dura Ace Di2 FD-R9200 12s
CASSETTE
Shimano Dura Ace Di2 FD-R9200 12s
CHAIN
Shimano Dura Ace CN-HG 12S
BOTTOM BRACKET
Shimano Dura Ace SM-BB9200
BRAKES
FRONT BRAKE DISC
Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
REAR BRAKE DISC
dura ace br-r9100, 2 pistons caliper, 140mm rotor
COCKPIT
INTEGRATED HANDLEBAR
MOST Talon Ultra Light
BAR TAPE
most bar tape
SEATPOST
Pinarello Aero Seatpost
SEAT CLAMP
fsc frontal seat clamp
WHEELS AND TIRES
TYRES DISC
Pirelli P ZERO Race TLR 35-622
WHEELSET DISC
MOST Ultrafast 40*
AXLES DISC
MOST Ultralight Custom Axle 12x100 & 12x142, Tool-free removal
ACCESSORIES AND NOTES
BOTTLES AND BOTTLE CAGES
Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

COMPARE MODELS

PINARELLO X9 SHIMANO DURA ACE Di2
PINARELLO X9 SHIMANO DURA ACE Di2
DOGMA X DURA ACE Di2
DOGMA X DURA ACE Di2
PINARELLO F9 DURA ACE Di2
PINARELLO F9 DURA ACE Di2
PINARELLO X9 SRAM RED AXS
PINARELLO X9 SRAM RED AXS
PINARELLO X9 SHIMANO DURA ACE Di2
PINARELLO X9 SHIMANO DURA ACE Di2
DOGMA X DURA ACE Di2
DOGMA X DURA ACE Di2
PINARELLO F9 DURA ACE Di2
PINARELLO F9 DURA ACE Di2
PINARELLO X9 SRAM RED AXS
PINARELLO X9 SRAM RED AXS
FRAME SIZES 9 11 9 9
FRAME TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
GROUPSET SHIMANO DURA ACE Di2 DURA ACE Di2 Dura Ace Di2 SRAM RED AXS
WHEELSET DISC MOST Ultrafast 40* PRINCETON GRIT 4540 DB MOST Ultrafast 40* MOST Ultrafast 40*
RIM
