PINARELLO XCT9

J180 ディスク

SHIMANO XT Di2 - BLACK ON BLACK

EVOLVED FOR EVERY CHALLENGE

The XCT 9 combines the same performance-focused frame platform and top-level suspension package as the Dogma XCT with a more essential component selection. It retains the efficiency, control and capability required for marathon, downcountry and long-distance riding, delivering a race-ready package designed for demanding terrain.

イノベーション

UNIQUE BOTTOM BRACKET AREA
FLEX STAYS
SPLIT REAR TRIANGLE
KINEMATICS
ADJUSTABLE TRAVEL
ASIMMETRY
COCKPIT

UNIQUE BOTTOM BRACKET AREA

This frame delivers exceptional stiffness in the rear triangle and bottom bracket area, thanks to an oversized bearing and the rear triangle pivot design.

FLEX STAYS

Having only three pivot points in the rear triangle would normally limit rear-wheel travel, but the bike’s unique geometry and the integration of flex stays work together to allow a more direct suspension movement.

These innovations also help reduce weight, increase stiffness, and provide a more direct connection between the rider and the rear wheel.

SPLIT REAR TRIANGLE

The rear triangle is made up of two separate half-sections mounted around a main pivot, using a unique design in which two pivots are co-molded directly into the rear triangle.

This eliminates the need for any additional connection between the two rear sections, allowing for shorter chainstays and delivering improved handling and responsiveness. It also removes critical mud-collection areas and enables the use of wider tires, giving riders a broader range of setup options.

KINEMATICS

The rear suspension kinematics have been developed to work together with the integrated flex stays, maximizing power transfer while pedalling, providing optimal compression and extension on technical descents, and giving the rider maximum control. Friction at each pivot point has also been minimized through a combination of bearings and bushings.

Anti-rise and anti-squat values have also been carefully studied to create a bike that performs equally well on the steepest climbs and the most technical descents.

ADJUSTABLE TRAVEL

The ability to reposition the suspension mounting point beneath the top tube allows different rear shock configurations to be used, accommodating a wide range of travel options and enabling riders to adapt the bike to the specific demands of each ride.

ASIMMETRY

The rear triangle features a patented asymmetric design with a reinforced left side, allowing the bike to counterbalance the greater forces generated on the drivetrain side. This results in more balanced power transfer, improved speed, and increased traction.

Asymmetry has also been maximized across other areas of the frame, with the chainstays and seatstays taking this concept even further to withstand the powerful accelerations generated in elite cross-country racing.

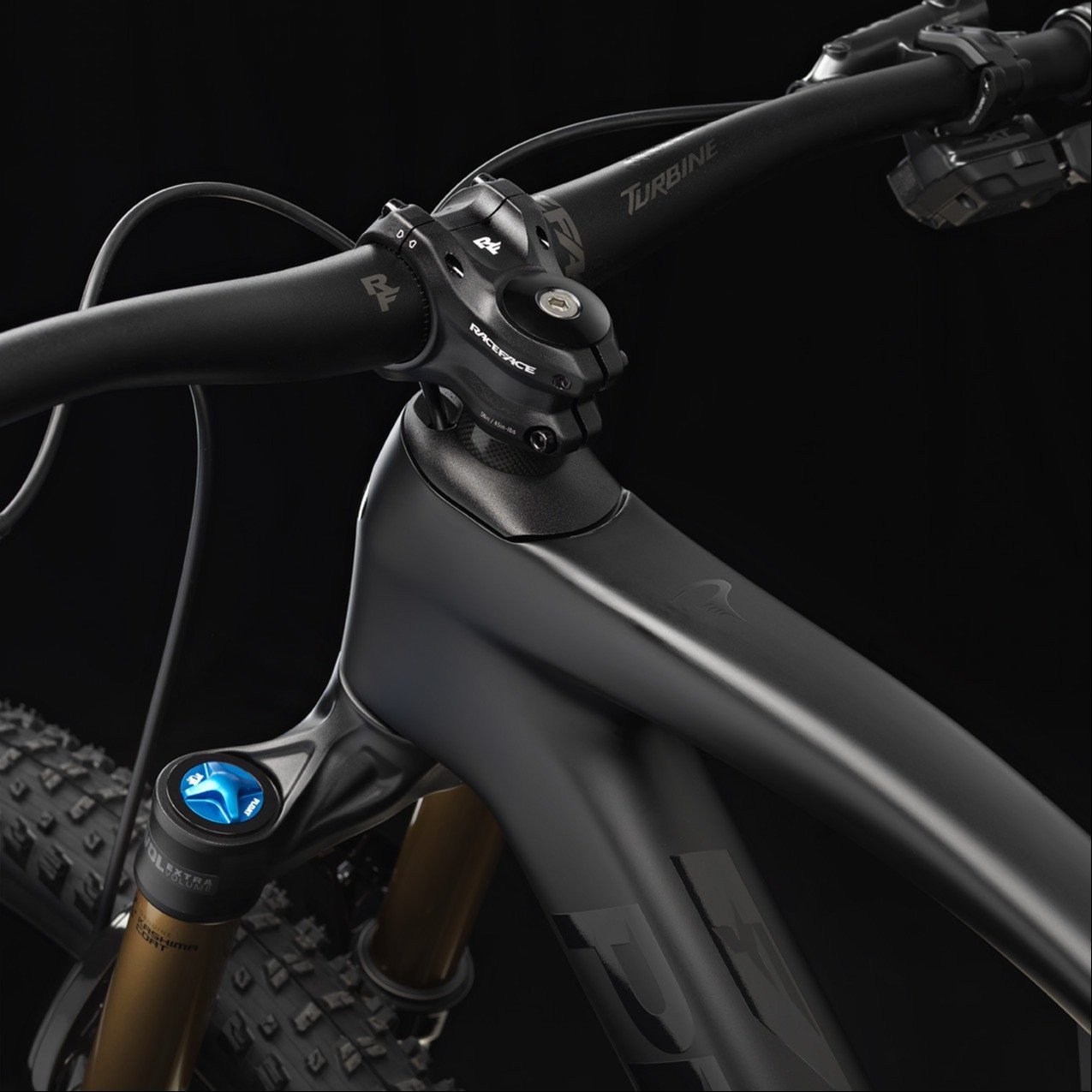

COCKPIT

The XCT features a separate handlebar and stem configuration, developed to provide greater control and a wider range of fit and setup options. This solution allows riders to fine-tune handlebar width, stem length and front-end position according to terrain, riding style and personal preference, while maintaining precise handling and a clean cockpit layout

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__fb7f978d2e3bed1b1ad15a2e4be4f81f.webp 4323w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__9c19b0288faa8aa3fd073a54b78d8ab5.webp 2428w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__98c102df3b797d573ded266d1a2a3ecf.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__98c102df3b797d573ded266d1a2a3ecf.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__98c102df3b797d573ded266d1a2a3ecf.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__98c102df3b797d573ded266d1a2a3ecf.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__98c102df3b797d573ded266d1a2a3ecf.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__98c102df3b797d573ded266d1a2a3ecf.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__98c102df3b797d573ded266d1a2a3ecf.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__98c102df3b797d573ded266d1a2a3ecf.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__98c102df3b797d573ded266d1a2a3ecf.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__98c102df3b797d573ded266d1a2a3ecf.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__98c102df3b797d573ded266d1a2a3ecf.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__98c102df3b797d573ded266d1a2a3ecf.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__98c102df3b797d573ded266d1a2a3ecf.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__98c102df3b797d573ded266d1a2a3ecf.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__98c102df3b797d573ded266d1a2a3ecf.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__98c102df3b797d573ded266d1a2a3ecf.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__98c102df3b797d573ded266d1a2a3ecf.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__98c102df3b797d573ded266d1a2a3ecf.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__98c102df3b797d573ded266d1a2a3ecf.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__98c102df3b797d573ded266d1a2a3ecf.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__98c102df3b797d573ded266d1a2a3ecf.webp 2428w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__32abb26a1282ff7623fc5029d4fab359.webp 184w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__32abb26a1282ff7623fc5029d4fab359.webp 367w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__32abb26a1282ff7623fc5029d4fab359.webp 551w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__32abb26a1282ff7623fc5029d4fab359.webp 281w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__32abb26a1282ff7623fc5029d4fab359.webp 562w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__32abb26a1282ff7623fc5029d4fab359.webp 843w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__32abb26a1282ff7623fc5029d4fab359.webp 319w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__32abb26a1282ff7623fc5029d4fab359.webp 637w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__32abb26a1282ff7623fc5029d4fab359.webp 956w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__32abb26a1282ff7623fc5029d4fab359.webp 480w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__32abb26a1282ff7623fc5029d4fab359.webp 959w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__32abb26a1282ff7623fc5029d4fab359.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__32abb26a1282ff7623fc5029d4fab359.webp 576w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__32abb26a1282ff7623fc5029d4fab359.webp 1151w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__32abb26a1282ff7623fc5029d4fab359.webp 1727w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__32abb26a1282ff7623fc5029d4fab359.webp 720w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__32abb26a1282ff7623fc5029d4fab359.webp 1439w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__32abb26a1282ff7623fc5029d4fab359.webp 2159w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__32abb26a1282ff7623fc5029d4fab359.webp 809w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__32abb26a1282ff7623fc5029d4fab359.webp 1619w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__32abb26a1282ff7623fc5029d4fab359.webp 2428w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__7fe1867cae10a467559aa63f52da9551.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__7fe1867cae10a467559aa63f52da9551.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__7fe1867cae10a467559aa63f52da9551.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__7fe1867cae10a467559aa63f52da9551.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__7fe1867cae10a467559aa63f52da9551.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__7fe1867cae10a467559aa63f52da9551.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__7fe1867cae10a467559aa63f52da9551.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__7fe1867cae10a467559aa63f52da9551.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__7fe1867cae10a467559aa63f52da9551.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__7fe1867cae10a467559aa63f52da9551.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__7fe1867cae10a467559aa63f52da9551.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__7fe1867cae10a467559aa63f52da9551.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__7fe1867cae10a467559aa63f52da9551.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__7fe1867cae10a467559aa63f52da9551.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__7fe1867cae10a467559aa63f52da9551.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__7fe1867cae10a467559aa63f52da9551.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__7fe1867cae10a467559aa63f52da9551.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__7fe1867cae10a467559aa63f52da9551.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__7fe1867cae10a467559aa63f52da9551.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__7fe1867cae10a467559aa63f52da9551.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__7fe1867cae10a467559aa63f52da9551.webp 4323w

https://pinarello.com/storage/thumbs/ProductGallery/_245_resize__6feb94a0e0891c12290559b7b661922b.webp 327w, https://pinarello.com/storage/thumbs/ProductGallery/_490_resize__6feb94a0e0891c12290559b7b661922b.webp 654w, https://pinarello.com/storage/thumbs/ProductGallery/_735_resize__6feb94a0e0891c12290559b7b661922b.webp 981w, https://pinarello.com/storage/thumbs/ProductGallery/_375_resize__6feb94a0e0891c12290559b7b661922b.webp 500w, https://pinarello.com/storage/thumbs/ProductGallery/_750_resize__6feb94a0e0891c12290559b7b661922b.webp 1001w, https://pinarello.com/storage/thumbs/ProductGallery/_1125_resize__6feb94a0e0891c12290559b7b661922b.webp 1501w, https://pinarello.com/storage/thumbs/ProductGallery/_425_resize__6feb94a0e0891c12290559b7b661922b.webp 567w, https://pinarello.com/storage/thumbs/ProductGallery/_850_resize__6feb94a0e0891c12290559b7b661922b.webp 1134w, https://pinarello.com/storage/thumbs/ProductGallery/_1275_resize__6feb94a0e0891c12290559b7b661922b.webp 1701w, https://pinarello.com/storage/thumbs/ProductGallery/_640_resize__6feb94a0e0891c12290559b7b661922b.webp 854w, https://pinarello.com/storage/thumbs/ProductGallery/_1280_resize__6feb94a0e0891c12290559b7b661922b.webp 1708w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__6feb94a0e0891c12290559b7b661922b.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_768_resize__6feb94a0e0891c12290559b7b661922b.webp 1025w, https://pinarello.com/storage/thumbs/ProductGallery/_1536_resize__6feb94a0e0891c12290559b7b661922b.webp 2049w, https://pinarello.com/storage/thumbs/ProductGallery/_2304_resize__6feb94a0e0891c12290559b7b661922b.webp 3074w, https://pinarello.com/storage/thumbs/ProductGallery/_960_resize__6feb94a0e0891c12290559b7b661922b.webp 1281w, https://pinarello.com/storage/thumbs/ProductGallery/_1920_resize__6feb94a0e0891c12290559b7b661922b.webp 2562w, https://pinarello.com/storage/thumbs/ProductGallery/_2880_resize__6feb94a0e0891c12290559b7b661922b.webp 3843w, https://pinarello.com/storage/thumbs/ProductGallery/_1080_resize__6feb94a0e0891c12290559b7b661922b.webp 1441w, https://pinarello.com/storage/thumbs/ProductGallery/_2160_resize__6feb94a0e0891c12290559b7b661922b.webp 2882w, https://pinarello.com/storage/thumbs/ProductGallery/_3240_resize__6feb94a0e0891c12290559b7b661922b.webp 4323w

ジオメトリー

CF	SIZE	L	I	A [°]	A1 [°]	B [°]	F	P	T	D	R	G	REACH	STACK
405	S	582.1	166.5	74.3	68.7	66.4	706.8	427.5	85	38	44	534	415,7	592.8
435	M	612.2	168	74.3	68.7	66.5	736.9	427.5	90	38.2	44	534	444.2	597.7
470	L	638.3	174.3	74.2	68.7	67	757.6	427.5	105	38.4	44	534	464	614.2
500	XL	663.5	179.5	74.1	68.7	67	783.2	427.5	120	38.5	44	534	484	628.3

すべてのコンポーネント

FRAME SET

FRAME

TORAY T900 UD

SHOCKS

FRONT SUSPENSION

FOX 34 FACTORY SC KASHIMA 120MM

REAR SUSPENSION

FOX FLOAT SL FACTORY KASHIMA 210X50

COCKPIT

HANDLEBAR

RACE FACE AEFFECT R

STEM

RACE FACE TURBINE

GRIPS

RACE FACE Half Nelson

SADDLE

Most Lynx My26

DROPPER POST

KS E20i 100MM, M 125MM, L150MM, XL175MM

SEAT CLAMP

MOST 30

モデルを比較

PINARELLO XCT9

PINARELLO XCR9

PINARELLO XCT7

	PINARELLO XCT9	PINARELLO XCR9	PINARELLO XCT7
フレームサイズ	4	4	4
フレーム	TORAY T900 UD	TORAY T900 UD	TORAY T900 UD
グループセット	SHIMANO XT Di2	SRAM XO AXS	SRAM EAGLE 90
