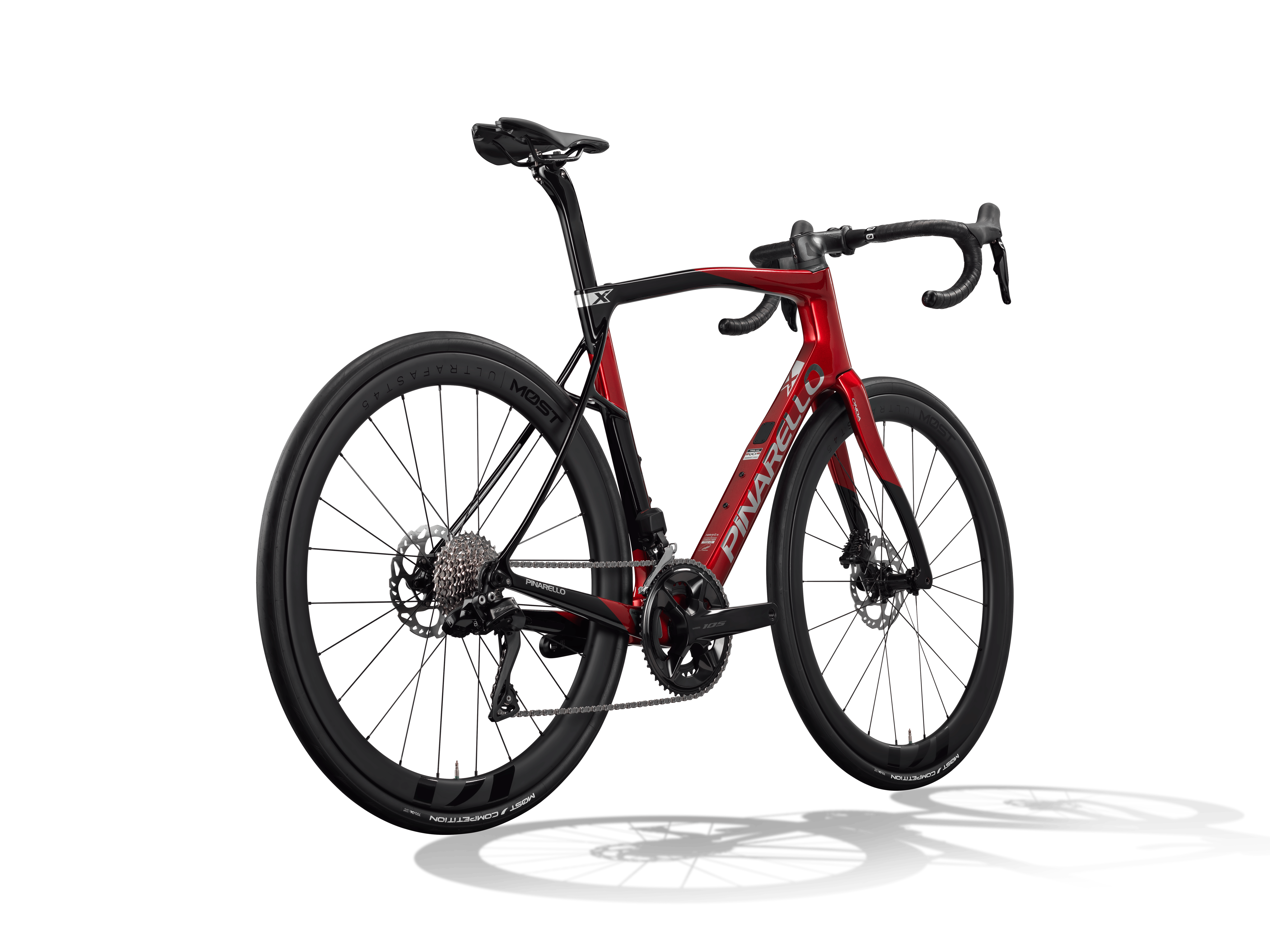

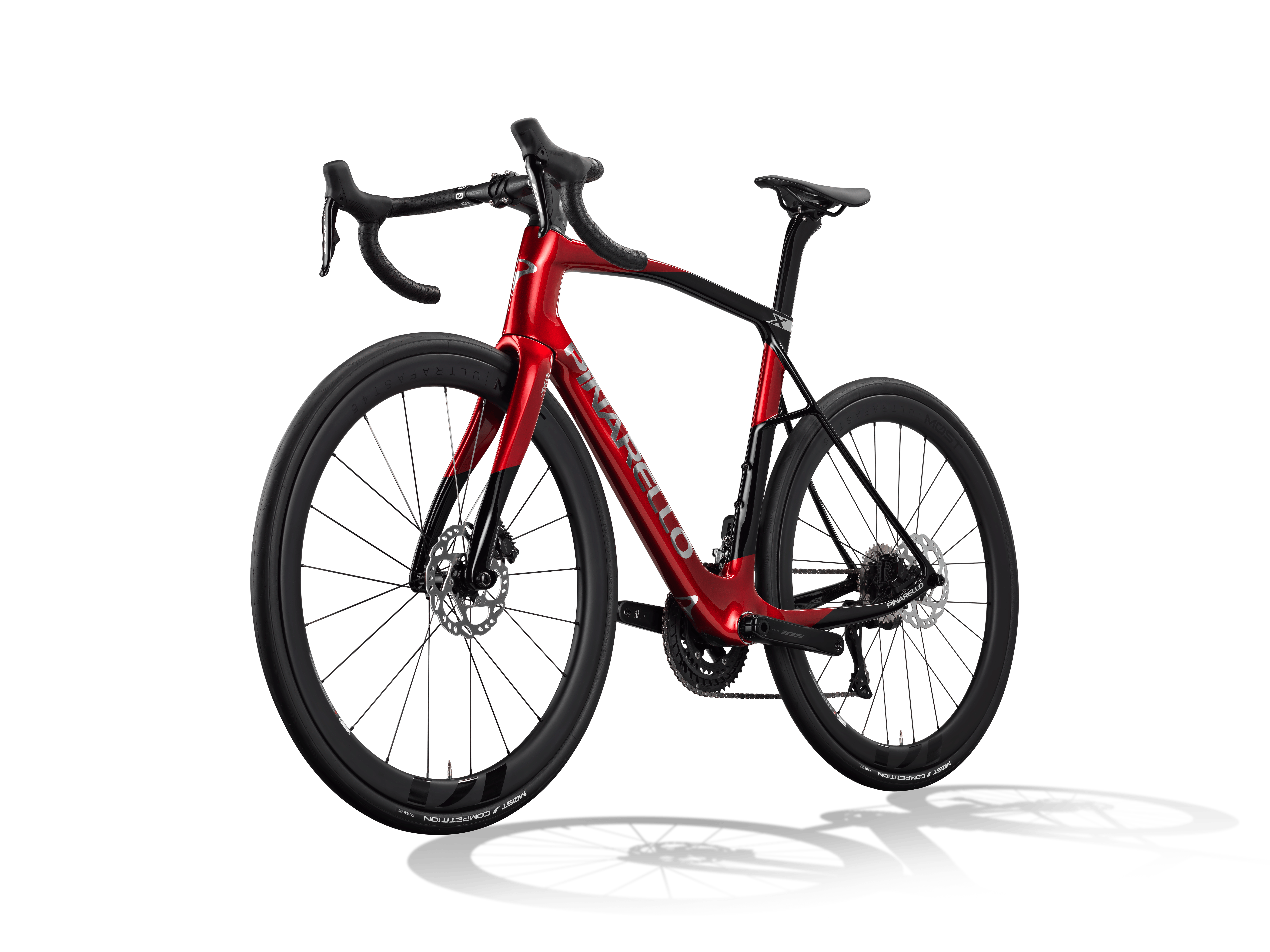

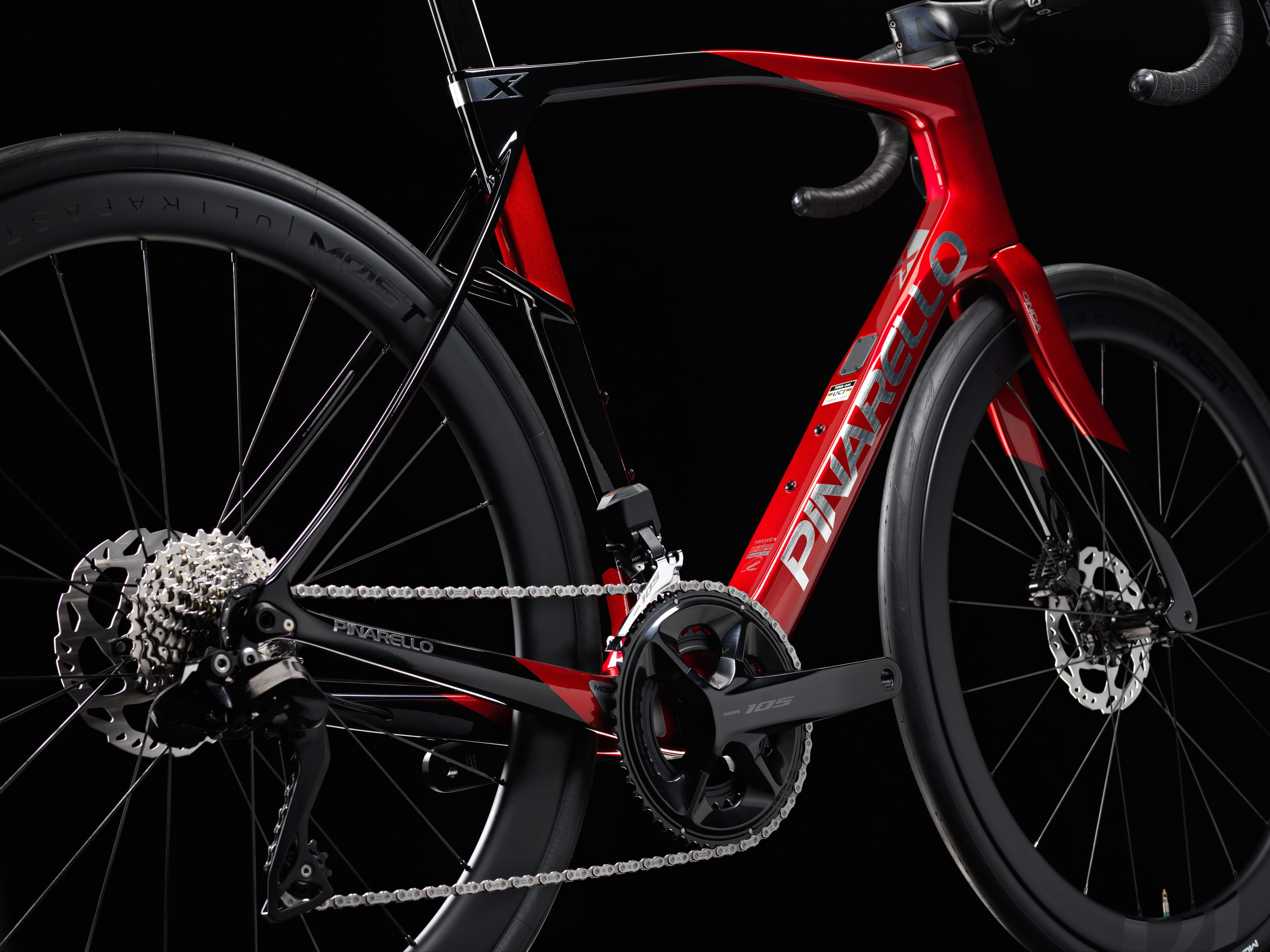

* groupset/wheels on the picture might differ from bike specification
These bikes have been specifically designed to maximise rider comfort and vibration absorption, thanks to the innovative use of carbon fiber layup and a redesigned rear triangle.
The secret of T700 Toray Carbon is to maintain reactivity and performances but to offer a higher dampening to absorb all road vibration. More comfort, more fun.
Higher stack and a more compact reach, promoting a relaxed riding position that allows bike fitters to accurately fit all kinds of cyclists.

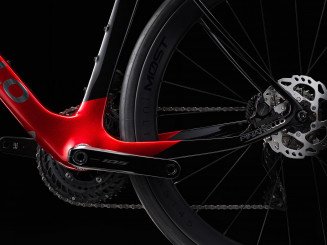

A new Pinarello technology capable of absorbing vibrations maintaining a light weight frame and a very reactive BB stiffness
35mm tires to unlock the frames’ true potential in terms of both comfort and speed.
For first Pinarello understood that, while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 492 | 75.25 | 70 | 422 | 123 | 67 | 52 | 375 | 341.9 | 527.5 |
| 450 | 460 | 509 | 74.5 | 70.5 | 422 | 128 | 72 | 52 | 375 | 352.1 | 539.2 |
| 470 | 490 | 525 | 74 | 71 | 422 | 140 | 72 | 52 | 375 | 361.9 | 552.4 |
| 495 | 515 | 536 | 73.75 | 71.5 | 422 | 149 | 72 | 47 | 375 | 368.5 | 564.4 |
| 510 | 530 | 545 | 73.5 | 72 | 422 | 159 | 72 | 47 | 375 | 372.5 | 575.8 |
| 525 | 545 | 555 | 73.25 | 72.25 | 422 | 171 | 72 | 47 | 375 | 376.7 | 588.2 |
| 540 | 560 | 565 | 73 | 72.5 | 422 | 185 | 72 | 47 | 375 | 380.2 | 602.4 |
| 560 | 580 | 577 | 72.75 | 72.5 | 422 | 209 | 67 | 47 | 375 | 384.1 | 620.3 |
| 590 | 600 | 590 | 72.5 | 72.5 | 422 | 230 | 67 | 47 | 375 | 388.1 | 640.4 |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
* also available with MOST Ultrafast 40 (dending on geographical availability)
|
PINARELLO X5 SHIMANO 105 Di2 |
DOGMA X DURA ACE Di2 |
PINARELLO X7 SHIMANO ULTEGRA Di2 |
|
|---|---|---|---|
| FRAME SIZES | 9 | 11 | 9 |
| FRAME | Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved | TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved | TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved |
| GROUPSET | SHIMANO 105 Di2 | DURA ACE Di2 | SHIMANO ULTEGRA Di2 |
| WHEELSET DISC | FULCRUM Racing 800DB* | PRINCETON GRIT 4540 DB | MOST Ultrafast 40* |
| RIM |
